Mutual exclusion synchronisation object

Data Structures
struct	m0_arch_mutex
struct	m0_mutex
struct	m0_mutex_addb2

Macros
#define	M0_ARCH_MUTEX_SINIT(arch_m)   { .m_mutex = __MUTEX_INITIALIZER((arch_m).m_mutex) }
#define	M0_TRACE_SUBSYSTEM   M0_TRACE_SUBSYS_LIB
#define	M0_MUTEX_SINIT(m)   { .m_arch = M0_ARCH_MUTEX_SINIT((m)->m_arch) }
#define	M0_ARCH_MUTEX_SINIT(arch_m)   { .m_impl = PTHREAD_MUTEX_INITIALIZER }

Functions
M0_INTERNAL void	m0_arch_mutex_init (struct m0_arch_mutex *mutex)
M0_INTERNAL void	m0_arch_mutex_fini (struct m0_arch_mutex *mutex)
M0_INTERNAL void	m0_arch_mutex_lock (struct m0_arch_mutex *mutex)
M0_INTERNAL int	m0_arch_mutex_trylock (struct m0_arch_mutex *mutex)
M0_INTERNAL void	m0_arch_mutex_unlock (struct m0_arch_mutex *mutex)
M0_INTERNAL void	m0_mutex_init (struct m0_mutex *mutex)
M0_INTERNAL void	m0_mutex_fini (struct m0_mutex *mutex)
M0_INTERNAL void	m0_mutex_lock (struct m0_mutex *mutex)
M0_INTERNAL void	m0_mutex_unlock (struct m0_mutex *mutex)
M0_INTERNAL int	m0_mutex_trylock (struct m0_mutex *mutex)
M0_INTERNAL bool	m0_mutex_is_locked (const struct m0_mutex *mutex)
M0_INTERNAL bool	m0_mutex_is_not_locked (const struct m0_mutex *mutex)

Detailed Description

Implementation of m0_arch_mutex on top of Linux struct mutex.

Linux kernel mutex.

User space mutex.

Implementation of m0_arch_mutex on top of pthread_mutex_t.

Macro Definition Documentation

M0_ARCH_MUTEX_SINIT [1/2]

#define M0_ARCH_MUTEX_SINIT

(

arch_m

)

{ .m_mutex = __MUTEX_INITIALIZER((arch_m).m_mutex) }

Definition at line 41 of file mutex.h.

M0_ARCH_MUTEX_SINIT [2/2]

#define M0_ARCH_MUTEX_SINIT

(

arch_m

)

{ .m_impl = PTHREAD_MUTEX_INITIALIZER }

Definition at line 42 of file mutex.h.

M0_MUTEX_SINIT

#define M0_MUTEX_SINIT

(

m

)

{ .m_arch = M0_ARCH_MUTEX_SINIT((m)->m_arch) }

Mutex static initialiser.

static struct m0_mutex lock = M0_MUTEX_SINIT(&lock);

This macro is useful only for global static mutexes, in other cases m0_mutex_init() should be used.

Definition at line 63 of file mutex.h.

M0_TRACE_SUBSYSTEM

#define M0_TRACE_SUBSYSTEM   M0_TRACE_SUBSYS_LIB

Definition at line 30 of file mutex.c.

Function Documentation

m0_arch_mutex_fini()

M0_INTERNAL void m0_arch_mutex_fini

(

struct m0_arch_mutex *

mutex

)

Definition at line 44 of file mutex.c.

Here is the caller graph for this function:

m0_arch_mutex_init()

M0_INTERNAL void m0_arch_mutex_init

(

struct m0_arch_mutex *

mutex

)

Definition at line 38 of file mutex.c.

Here is the caller graph for this function:

m0_arch_mutex_lock()

M0_INTERNAL void m0_arch_mutex_lock

(

struct m0_arch_mutex *

mutex

)

Definition at line 50 of file mutex.c.

Here is the caller graph for this function:

m0_arch_mutex_trylock()

M0_INTERNAL int m0_arch_mutex_trylock

(

struct m0_arch_mutex *

mutex

)

Definition at line 56 of file mutex.c.

Here is the caller graph for this function:

m0_arch_mutex_unlock()

M0_INTERNAL void m0_arch_mutex_unlock

(

struct m0_arch_mutex *

mutex

)

Definition at line 61 of file mutex.c.

Here is the caller graph for this function:

m0_mutex_fini()

M0_INTERNAL void m0_mutex_fini

(

struct m0_mutex *

mutex

)

Definition at line 42 of file mutex.c.

Here is the call graph for this function:

m0_mutex_init()

M0_INTERNAL void m0_mutex_init

(

struct m0_mutex *

mutex

)

Definition at line 35 of file mutex.c.

Here is the call graph for this function:

m0_mutex_is_locked()

M0_INTERNAL bool m0_mutex_is_locked

(

const struct m0_mutex *

mutex

)

True iff mutex is locked by the calling thread.

Note

this function can be used only in assertions.

Definition at line 95 of file mutex.c.

Here is the call graph for this function:

m0_mutex_is_not_locked()

M0_INTERNAL bool m0_mutex_is_not_locked

(

const struct m0_mutex *

mutex

)

True iff mutex is not locked by the calling thread.

Note

this function can be used only in assertions.

Definition at line 101 of file mutex.c.

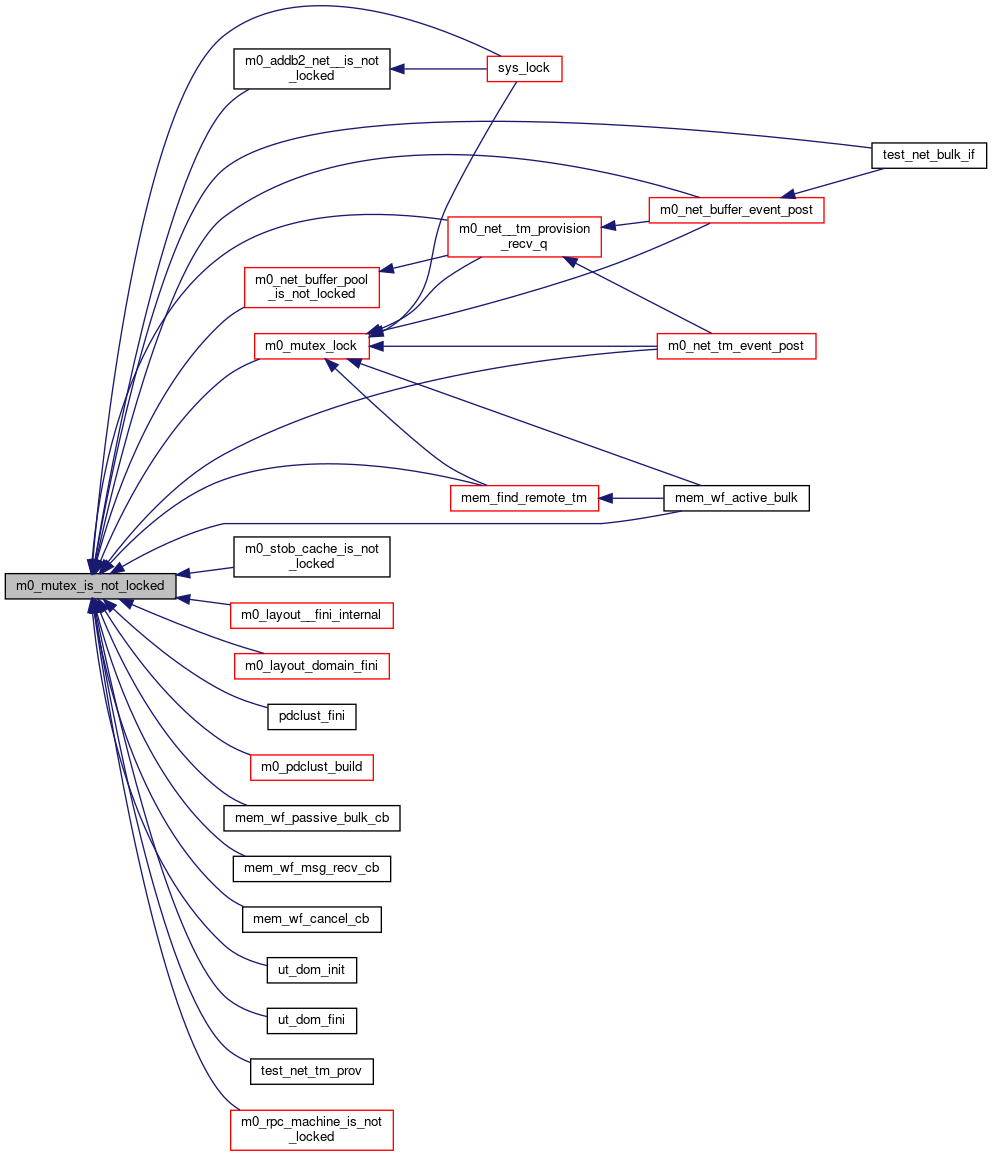

Here is the call graph for this function:

Here is the caller graph for this function:

m0_mutex_lock()

M0_INTERNAL void m0_mutex_lock

(

struct m0_mutex *

mutex

)

Returns with the mutex locked.

Precondition

m0_mutex_is_not_locked(mutex)

Postcondition

m0_mutex_is_locked(mutex)

Definition at line 49 of file mutex.c.

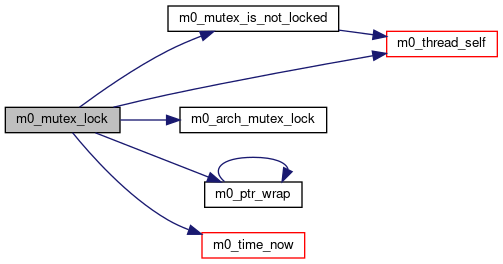

Here is the call graph for this function:

m0_mutex_trylock()

M0_INTERNAL int m0_mutex_trylock

(

struct m0_mutex *

mutex

)

Try to take a mutex lock. Returns 0 with the mutex locked, or non-zero if lock is already hold by others.

Definition at line 84 of file mutex.c.

Here is the call graph for this function:

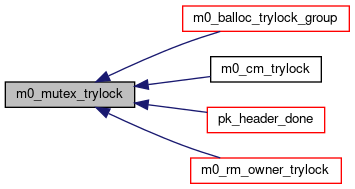

Here is the caller graph for this function:

m0_mutex_unlock()

M0_INTERNAL void m0_mutex_unlock

(

struct m0_mutex *

mutex

)

Unlocks the mutex.

Precondition

m0_mutex_is_locked(mutex)

Postcondition

m0_mutex_is_not_locked(mutex)

Definition at line 66 of file mutex.c.

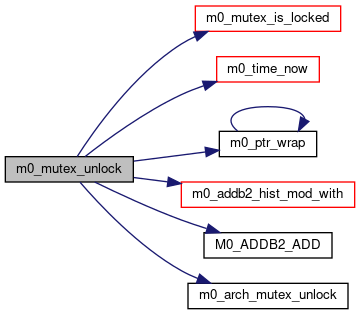

Here is the call graph for this function:
