Persistent objects format

Data Structures
struct	m0_format_header
struct	m0_format_footer
struct	m0_format_tag
struct	m0_be_mutex
struct	m0_be_rwlock
struct	m0_be_clink
struct	m0_be_chan

Macros
#define	M0_BE_MUTEX_PAD   168
#define	M0_BE_RWLOCK_PAD   144
#define	M0_BE_CLINK_PAD   sizeof(struct m0_clink)

Enumerations
enum	m0_format_type {   M0_FORMAT_TYPE_BEGIN = 1, M0_FORMAT_TYPE_RPC_PACKET = M0_FORMAT_TYPE_BEGIN, M0_FORMAT_TYPE_RPC_ITEM, M0_FORMAT_TYPE_BE_BTREE,   M0_FORMAT_TYPE_BE_BNODE, M0_FORMAT_TYPE_BE_EMAP_KEY, M0_FORMAT_TYPE_BE_EMAP_REC, M0_FORMAT_TYPE_BE_EMAP,   M0_FORMAT_TYPE_BE_LIST, M0_FORMAT_TYPE_BE_SEG_HDR, M0_FORMAT_TYPE_BALLOC, M0_FORMAT_TYPE_ADDB2_FRAME_HEADER,   M0_FORMAT_TYPE_STOB_AD_0TYPE_REC, M0_FORMAT_TYPE_STOB_AD_DOMAIN, M0_FORMAT_TYPE_COB_DOMAIN, M0_FORMAT_TYPE_COB_NSREC,   M0_FORMAT_TYPE_BALLOC_GROUP_DESC, M0_FORMAT_TYPE_EXT, M0_FORMAT_TYPE_CAS_INDEX, M0_FORMAT_TYPE_POOLNODE,   M0_FORMAT_TYPE_POOLDEV, M0_FORMAT_TYPE_POOL_SPARE_USAGE, M0_FORMAT_TYPE_CAS_STATE, M0_FORMAT_TYPE_CAS_CTG,   M0_FORMAT_TYPE_NR }

Functions
M0_INTERNAL void	m0_format_header_pack (struct m0_format_header *dest, const struct m0_format_tag *src)
M0_INTERNAL void	m0_format_header_unpack (struct m0_format_tag *dest, const struct m0_format_header *src)
M0_INTERNAL void	m0_format_footer_generate (struct m0_format_footer *footer, const void *buffer, uint32_t size)
static int	get_footer_from_buf (const void *buffer, const struct m0_format_footer **footer, uint32_t *footer_offset)
M0_INTERNAL void	m0_format_footer_update (const void *buffer)
static void	format_iem_post (const char *msg, bool iem)
M0_INTERNAL int	m0_format_footer_verify_generic (const struct m0_format_footer *footer, const void *buffer, uint32_t size, bool iem)
M0_INTERNAL int	m0_format_footer_verify (const void *buffer, bool iem)
struct m0_format_header	M0_XCA_DOMAIN (be|rpc)
	M0_BASSERT (M0_FORMAT_TYPE_NR< UINT16_MAX)
struct m0_be_mutex	M0_XCA_DOMAIN (be)
	M0_BASSERT (sizeof(struct m0_mutex)<=sizeof(M0_FIELD_VALUE(struct m0_be_mutex, bm_u.pad)))
	M0_BASSERT (sizeof(struct m0_rwlock)<=sizeof(M0_FIELD_VALUE(struct m0_be_rwlock, bl_u.pad)))
	M0_BASSERT (sizeof(struct m0_clink)<=sizeof(M0_FIELD_VALUE(struct m0_be_clink, bc_u.pad)))

Variables
struct m0_format_tag	M0_XCA_DOMAIN
enum m0_format_type	M0_XCA_ENUM

Detailed Description

Macro Definition Documentation

M0_BE_CLINK_PAD

#define M0_BE_CLINK_PAD   sizeof(struct m0_clink)

Definition at line 193 of file format.h.

M0_BE_MUTEX_PAD

#define M0_BE_MUTEX_PAD   168

Definition at line 191 of file format.h.

M0_BE_RWLOCK_PAD

#define M0_BE_RWLOCK_PAD   144

Definition at line 192 of file format.h.

Enumeration Type Documentation

m0_format_type

enum m0_format_type

Format types

Enumerator
M0_FORMAT_TYPE_BEGIN
M0_FORMAT_TYPE_RPC_PACKET
M0_FORMAT_TYPE_RPC_ITEM
M0_FORMAT_TYPE_BE_BTREE
M0_FORMAT_TYPE_BE_BNODE
M0_FORMAT_TYPE_BE_EMAP_KEY
M0_FORMAT_TYPE_BE_EMAP_REC
M0_FORMAT_TYPE_BE_EMAP
M0_FORMAT_TYPE_BE_LIST
M0_FORMAT_TYPE_BE_SEG_HDR
M0_FORMAT_TYPE_BALLOC
M0_FORMAT_TYPE_ADDB2_FRAME_HEADER
M0_FORMAT_TYPE_STOB_AD_0TYPE_REC
M0_FORMAT_TYPE_STOB_AD_DOMAIN
M0_FORMAT_TYPE_COB_DOMAIN
M0_FORMAT_TYPE_COB_NSREC
M0_FORMAT_TYPE_BALLOC_GROUP_DESC
M0_FORMAT_TYPE_EXT
M0_FORMAT_TYPE_CAS_INDEX
M0_FORMAT_TYPE_POOLNODE
M0_FORMAT_TYPE_POOLDEV
M0_FORMAT_TYPE_POOL_SPARE_USAGE
M0_FORMAT_TYPE_CAS_STATE
M0_FORMAT_TYPE_CAS_CTG
M0_FORMAT_TYPE_NR

Definition at line 82 of file format.h.

Function Documentation

format_iem_post()

static void format_iem_post ( const char *  msg, bool  iem  )

static

Definition at line 115 of file format.c.

Here is the caller graph for this function:

get_footer_from_buf()

static int get_footer_from_buf ( const void *  buffer, const struct m0_format_footer **  footer, uint32_t *  footer_offset  )

static

Definition at line 67 of file format.c.

Here is the call graph for this function:

Here is the caller graph for this function:

M0_BASSERT() [1/4]

M0_BASSERT

(

)

M0_BASSERT() [2/4]

M0_BASSERT

(

sizeof(struct m0_mutex)<=sizeof(M0_FIELD_VALUE(struct m0_be_mutex, bm_u.pad))

)

M0_BASSERT() [3/4]

M0_BASSERT

(

sizeof(struct m0_rwlock)<=sizeof(M0_FIELD_VALUE(struct m0_be_rwlock, bl_u.pad))

)

M0_BASSERT() [4/4]

M0_BASSERT

(

sizeof(struct m0_clink)<=sizeof(M0_FIELD_VALUE(struct m0_be_clink, bc_u.pad))

)

m0_format_footer_generate()

M0_INTERNAL void m0_format_footer_generate	(	struct m0_format_footer *	footer,
		const void *	buffer,
		uint32_t	size
	)

Definition at line 59 of file format.c.

Here is the call graph for this function:

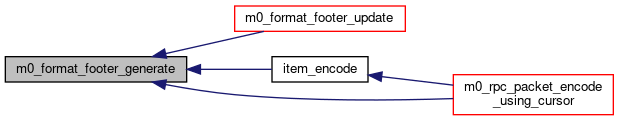

Here is the caller graph for this function:

m0_format_footer_update()

M0_INTERNAL void m0_format_footer_update

(

const void *

buffer

)

Updates existing footer in a struct.

Expects a corretcly filled m0_format_header to be present at the beginning of a buffer.

Definition at line 95 of file format.c.

Here is the call graph for this function:

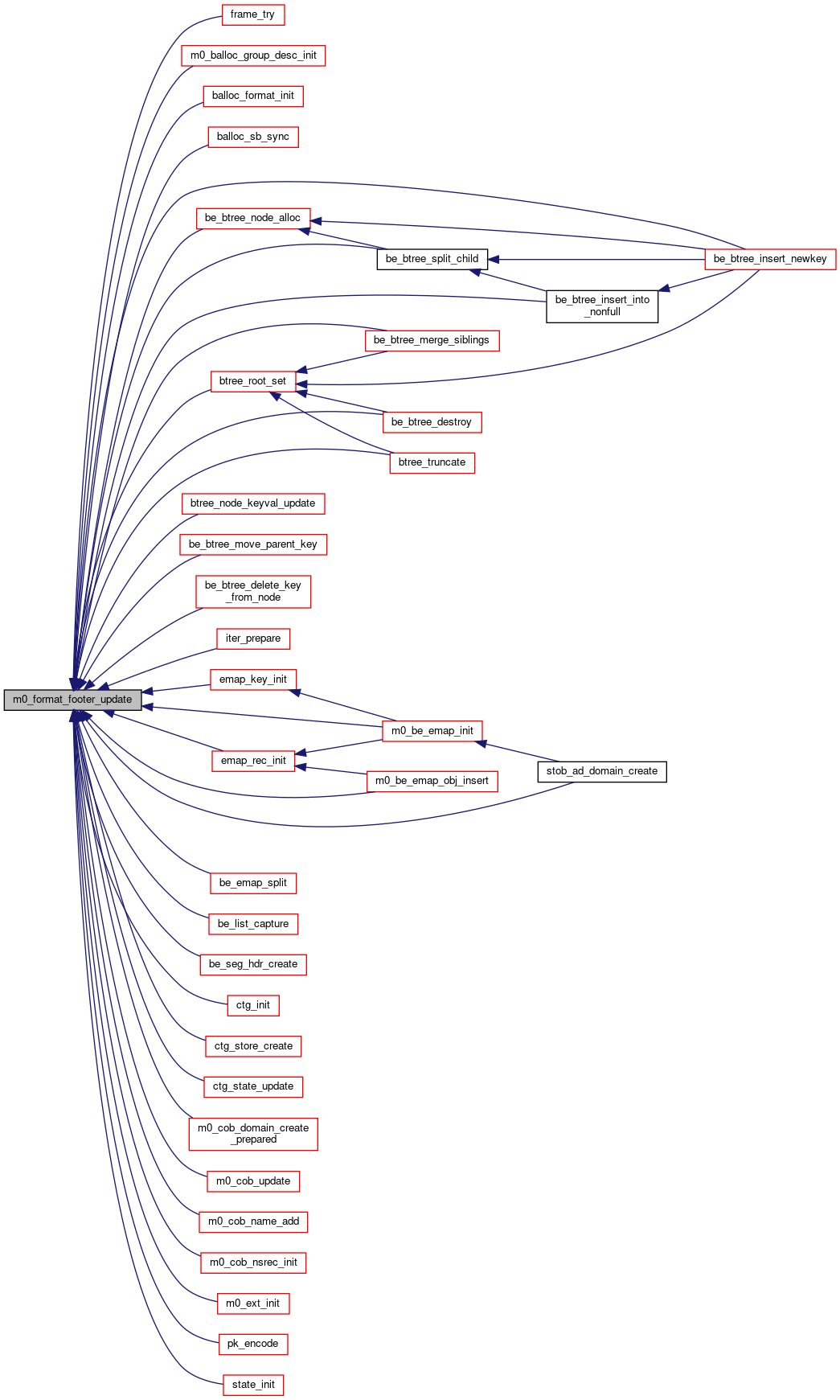

Here is the caller graph for this function:

m0_format_footer_verify()

M0_INTERNAL int m0_format_footer_verify	(	const void *	buffer,
		bool	iem
	)

A wrapper around m0_format_footer_verify_generic() for the case when header and footer are contained withing the same parent/container struct.

Parameters

buffer	- should point to a struct with m0_format_header and m0_format_footer inside; header should be right at the beginning of the struct; checksum is verified for the header and all other fields in the struct, which come after it but before the footer.
iem	- true for metadata operations. false for non metadata operations and tools.

Definition at line 149 of file format.c.

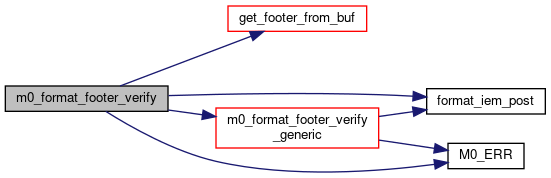

Here is the call graph for this function:

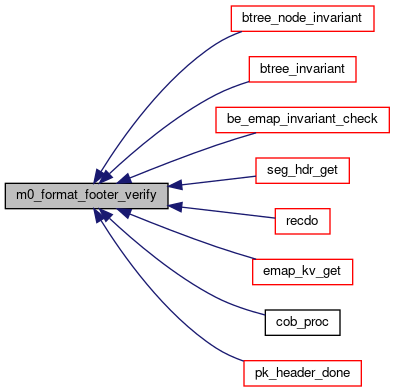

Here is the caller graph for this function:

m0_format_footer_verify_generic()

M0_INTERNAL int m0_format_footer_verify_generic	(	const struct m0_format_footer *	footer,
		const void *	buffer,
		uint32_t	size,
		bool	iem
	)

Verifies format footer, ensuring that checksum in the footer matches the data. It can be used when header and footer aren't contained within the same parent/container struct

Parameters

footer	- actual footer, with original checksum
buffer	- beginning of the data for which checksum is calculated
size	- size of the data
iem	- true for metadata operations. false for non metadata operations and tools.

Definition at line 125 of file format.c.

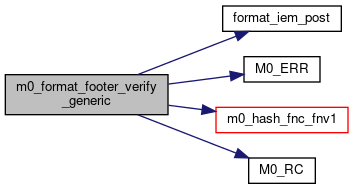

Here is the call graph for this function:

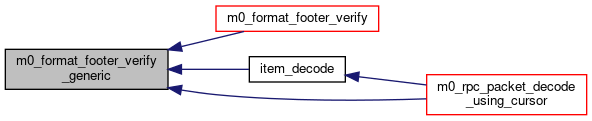

Here is the caller graph for this function:

m0_format_header_pack()

M0_INTERNAL void m0_format_header_pack	(	struct m0_format_header *	dest,
		const struct m0_format_tag *	src
	)

Definition at line 40 of file format.c.

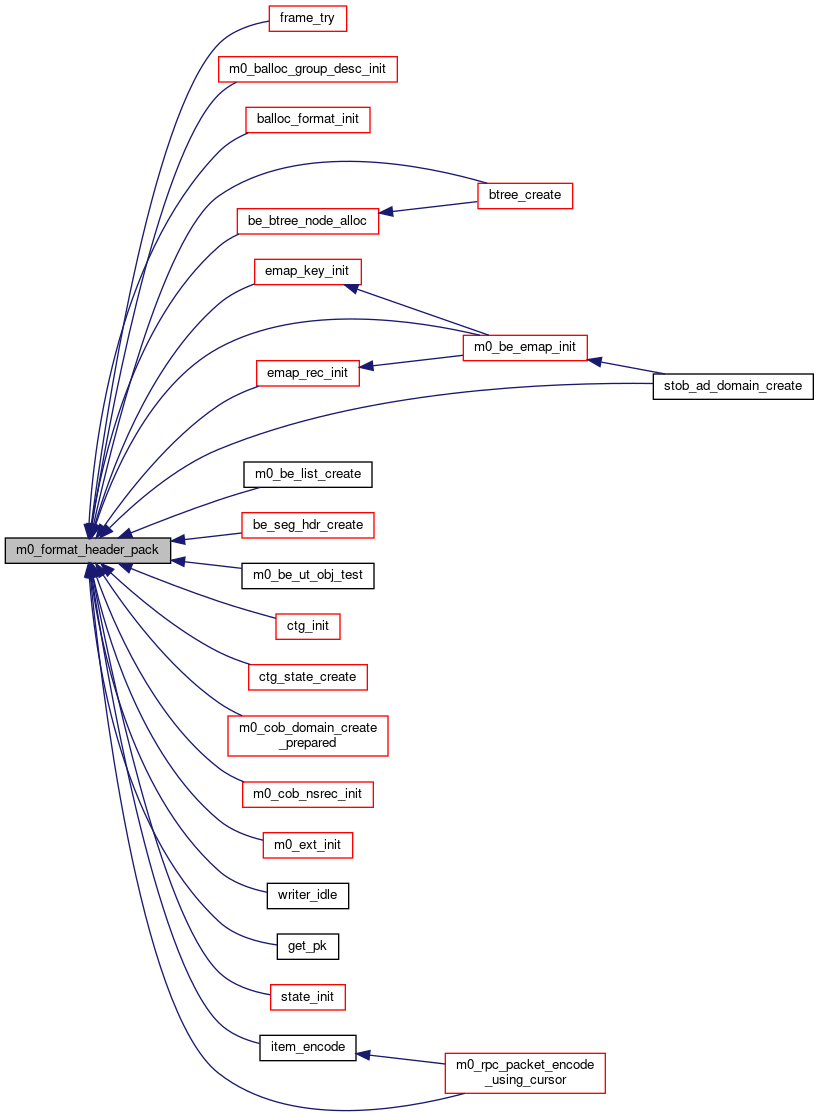

Here is the caller graph for this function:

m0_format_header_unpack()

M0_INTERNAL void m0_format_header_unpack	(	struct m0_format_tag *	dest,
		const struct m0_format_header *	src
	)

Definition at line 49 of file format.c.

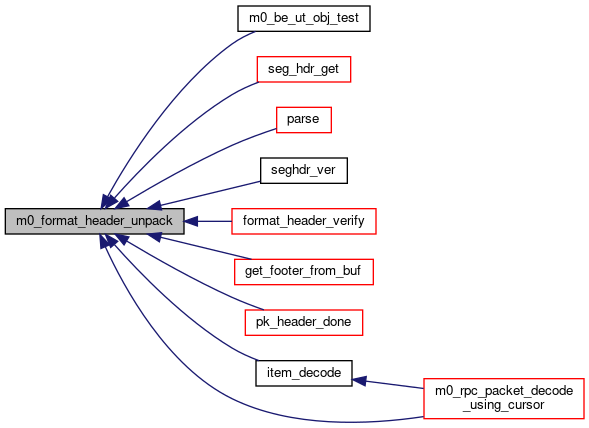

Here is the caller graph for this function:

M0_XCA_DOMAIN() [1/2]

struct m0_format_header M0_XCA_DOMAIN

(

be|

rpc

)

M0_XCA_DOMAIN() [2/2]

struct m0_be_mutex M0_XCA_DOMAIN

(

be

)

Variable Documentation

M0_XCA_DOMAIN

struct m0_format_tag M0_XCA_DOMAIN

M0_XCA_ENUM

enum m0_format_type M0_XCA_ENUM
