m0_rm_domain Struct Reference

#include <rm.h>

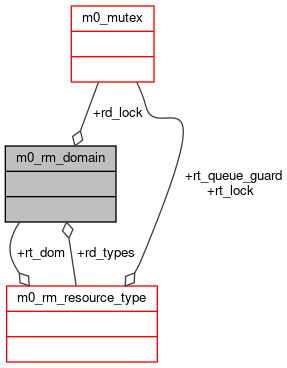

Collaboration diagram for m0_rm_domain:

Data Fields
struct m0_rm_resource_type *	rd_types [M0_RM_RESOURCE_TYPE_ID_MAX]
struct m0_mutex	rd_lock

Detailed Description

Domain of resource management.

All other resource manager data-structures (resource types, resources, owners, credits, &c.) belong to some domain, directly or indirectly.

Domains support multiple independent resource management services in the same address space (user process or kernel). Each request handler and each client kernel instance run a resource management service, but multiple request handlers can co-exist in the same address space.

Definition at line 279 of file rm.h.

Field Documentation

rd_lock

struct m0_mutex rd_lock

Definition at line 287 of file rm.h.

rd_types

struct m0_rm_resource_type* rd_types[M0_RM_RESOURCE_TYPE_ID_MAX]

An array where resource types are registered. Protected by m0_rm_domain::rd_lock.

See also

m0_rm_resource_type::rt_id

Definition at line 286 of file rm.h.

---

The documentation for this struct was generated from the following file:

• rm/rm.h
