Data Structures
struct	m0_tl_descr

struct	m0_tl

struct	m0_tlink

Macros
#define	M0_TL_DESCR(name, ambient_type, link_field, link_magic_field, link_magic, head_magic)

#define	m0_tlist_for(descr, head, obj)

#define	m0_tlist_endfor ;(void)__tl; } while (0)

#define	m0_tlist_forall(descr, var, head, ...)

#define	M0_TL_DESCR_DECLARE(name, scope) scope const struct m0_tl_descr name ## _tl

#define	M0_TL_DECLARE(name, scope, amb_type)

#define	__AUN __attribute__((unused))

#define	M0_TL_DESCR_DEFINE(name, hname, scope, amb_type, amb_link_field, amb_magic_field, amb_magic, head_magic)

#define	M0_TL_DEFINE(name, scope, amb_type)

#define	m0_tl_for(name, head, obj) m0_tlist_for(& name ## _tl, head, obj)

#define	m0_tl_endfor m0_tlist_endfor

#define	m0_tl_teardown(name, head, obj) while (((obj) = name ## _tlist_pop(head)) != NULL)

#define	m0_tl_forall(name, var, head, ...)

#define	m0_tl_find(name, var, head, ...)

#define	m0_tl_exists(name, var, head, ...) (!m0_tl_forall(name, var, head, !({ __VA_ARGS__ ; })))

Functions

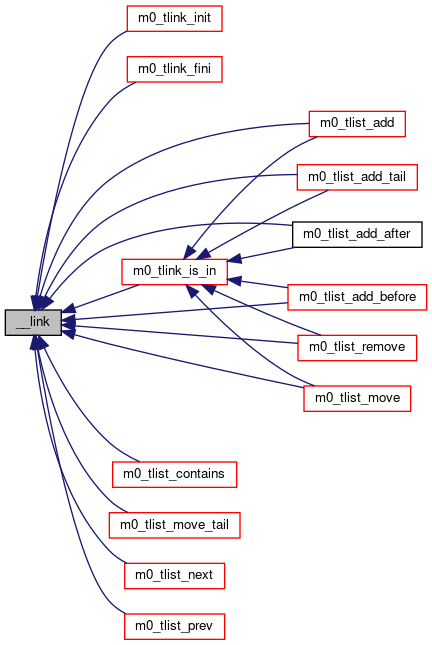

static struct m0_list_link *	__link (const struct m0_tl_descr d, const void obj)

static uint64_t	magic (const struct m0_tl_descr d, const void obj)

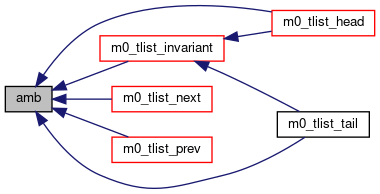

static void *	amb (const struct m0_tl_descr d, struct m0_list_link link)

M0_INTERNAL void	m0_tlist_init (const struct m0_tl_descr d, struct m0_tl list)

M0_INTERNAL void	m0_tlist_fini (const struct m0_tl_descr d, struct m0_tl list)

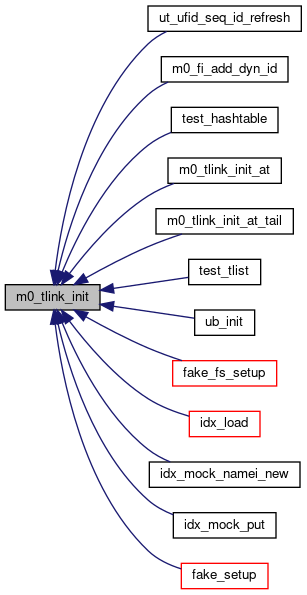

M0_INTERNAL void	m0_tlink_init (const struct m0_tl_descr d, void obj)

M0_INTERNAL void	m0_tlink_init_at (const struct m0_tl_descr d, void obj, struct m0_tl *list)

M0_INTERNAL void	m0_tlink_init_at_tail (const struct m0_tl_descr d, void obj, struct m0_tl *list)

M0_INTERNAL void	m0_tlink_fini (const struct m0_tl_descr d, void obj)

M0_INTERNAL void	m0_tlink_del_fini (const struct m0_tl_descr d, void obj)

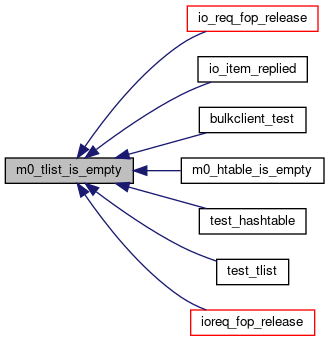

M0_INTERNAL bool	m0_tlist_is_empty (const struct m0_tl_descr d, const struct m0_tl list)

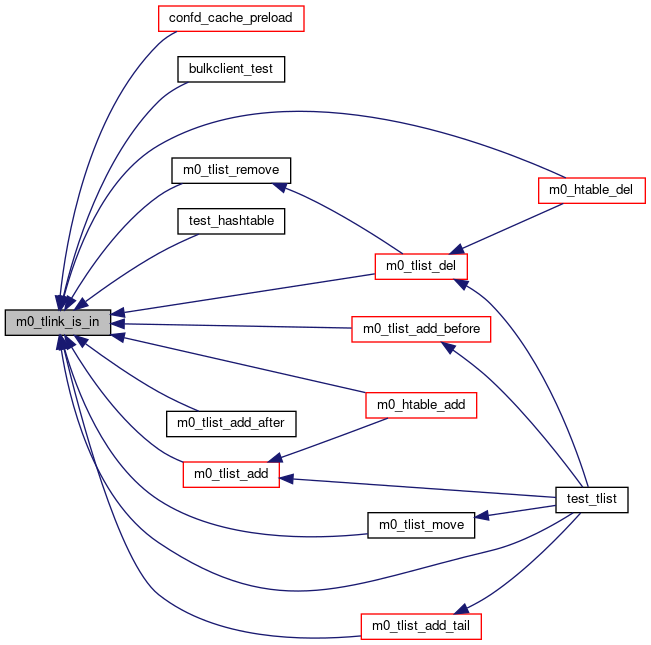

M0_INTERNAL bool	m0_tlink_is_in (const struct m0_tl_descr d, const void obj)

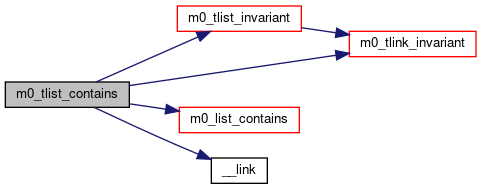

M0_INTERNAL bool	m0_tlist_contains (const struct m0_tl_descr d, const struct m0_tl list, const void *obj)

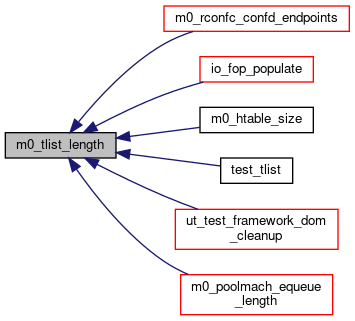

M0_INTERNAL size_t	m0_tlist_length (const struct m0_tl_descr d, const struct m0_tl list)

M0_INTERNAL void	m0_tlist_add (const struct m0_tl_descr d, struct m0_tl list, void *obj)

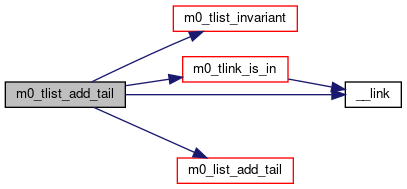

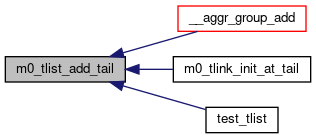

M0_INTERNAL void	m0_tlist_add_tail (const struct m0_tl_descr d, struct m0_tl list, void *obj)

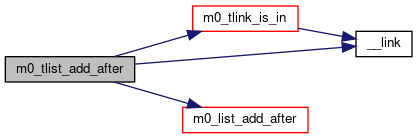

M0_INTERNAL void	m0_tlist_add_after (const struct m0_tl_descr d, void obj, void *new)

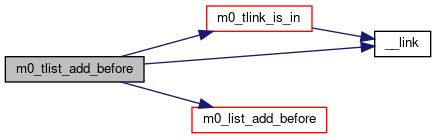

M0_INTERNAL void	m0_tlist_add_before (const struct m0_tl_descr d, void obj, void *new)

M0_INTERNAL void	m0_tlist_del (const struct m0_tl_descr d, void obj)

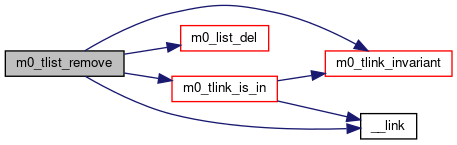

M0_INTERNAL void	m0_tlist_remove (const struct m0_tl_descr d, void obj)

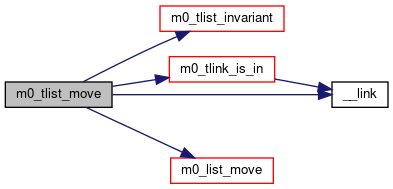

M0_INTERNAL void	m0_tlist_move (const struct m0_tl_descr d, struct m0_tl list, void *obj)

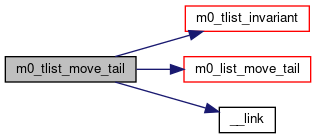

M0_INTERNAL void	m0_tlist_move_tail (const struct m0_tl_descr d, struct m0_tl list, void *obj)

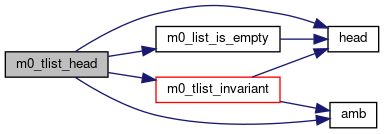

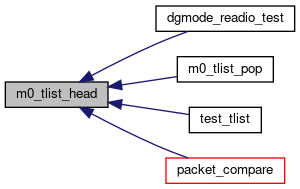

void *	m0_tlist_head (const struct m0_tl_descr d, const struct m0_tl list)

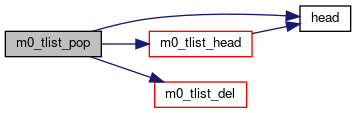

M0_INTERNAL void *	m0_tlist_pop (const struct m0_tl_descr d, const struct m0_tl list)

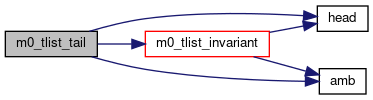

M0_INTERNAL void *	m0_tlist_tail (const struct m0_tl_descr d, const struct m0_tl list)

void *	m0_tlist_next (const struct m0_tl_descr d, const struct m0_tl list, const void *obj)

M0_INTERNAL void *	m0_tlist_prev (const struct m0_tl_descr d, const struct m0_tl list, const void *obj)

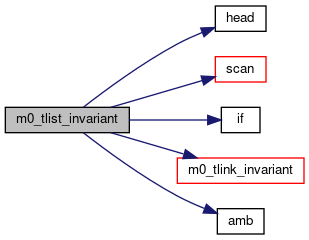

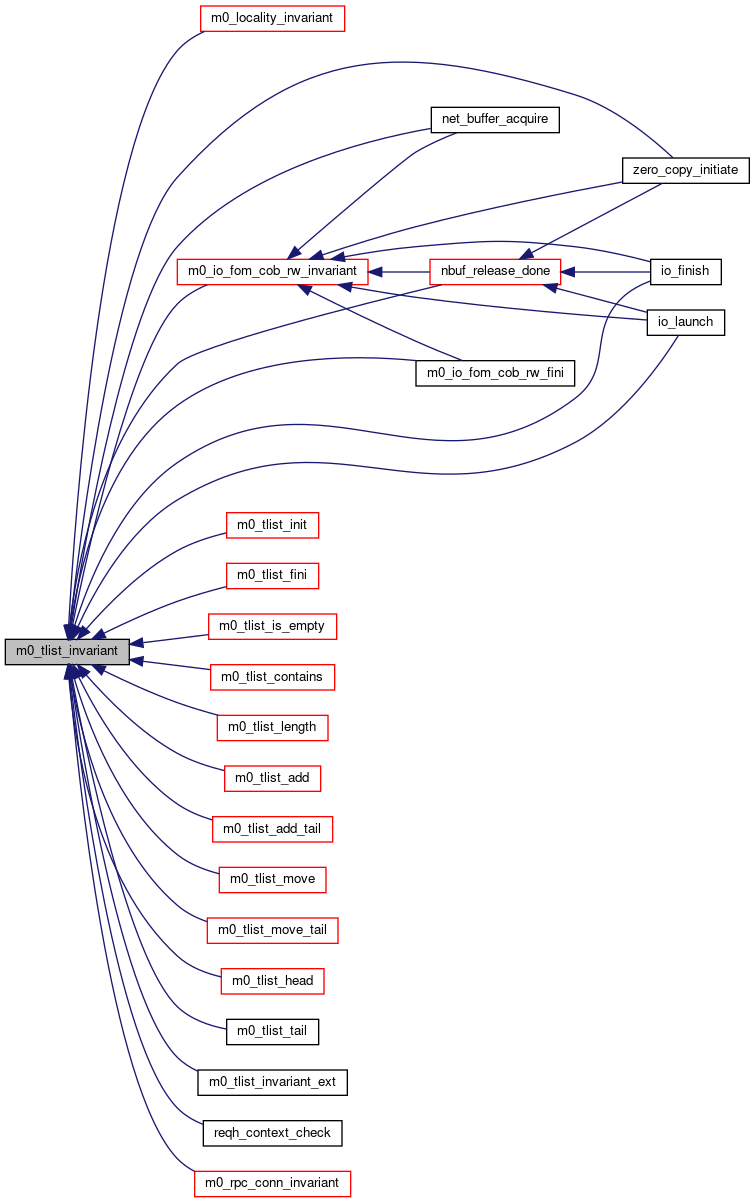

M0_INTERNAL bool	m0_tlist_invariant (const struct m0_tl_descr d, const struct m0_tl list)

M0_INTERNAL bool	m0_tlist_invariant_ext (const struct m0_tl_descr d, const struct m0_tl list, bool(check)(const void , void ), void datum)

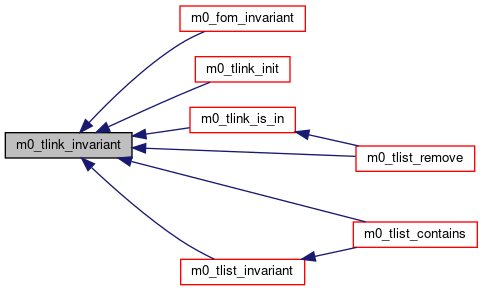

M0_INTERNAL bool	m0_tlink_invariant (const struct m0_tl_descr d, const void obj)

struct m0_tl_descr	M0_XCA_DOMAIN (be)

Variables
const char *	td_name

int	td_link_offset

int	td_link_magic_offset

uint64_t	td_link_magic

uint64_t	td_head_magic

size_t	td_container_size

const char *	td_name

int	td_link_offset

int	td_link_magic_offset

uint64_t	td_link_magic

uint64_t	td_head_magic

size_t	td_container_size

uint64_t	t_magic

struct m0_list	t_head

uint64_t	t_magic

struct m0_list	t_head

struct m0_list_link	t_link

struct m0_list_link	t_link

Detailed Description

Typed list module provides a double-linked list implementation that eliminates some chores and sources of errors typical for the "raw" m0_list interface.

Typed list is implemented on top of m0_list and adds the following features:

- a "list descriptor" (m0_tl_descr) object holding information about this
  list type, including its human readable name;

- "magic" numbers embedded in list header and list links and checked by
  the code to catch corruptions;

- automatic conversion to and from list links and ambient objects they
  are embedded to, obviating the need in container_of() and
  m0_list_entry() calls. In fact, links (m0_tlink) are not mentioned in
  tlist interface at all;

- gdb (7.0) pretty-printer for lists (not yet implemented).

tlist is a safe and more convenient alternative to m0_list. As a general rule, m0_list should be used only when performance is critical or some flexibility beyond what tlist provides (e.g., a cyclic list without a head object) is necessary.

Similarly to m0_list, tlist is a purely algorithmic module: it deals with neither concurrency nor liveness nor with any similar issues that its callers are supposed to handle.

To describe a typical tlist usage pattern, suppose that one wants a list of objects of type foo hanging off every object of type bar.

First, two things have to be done:

"list link" has to be embedded in foo:

struct foo {
        ...
        // linkage into a list of foo-s hanging off bar::b_list
        struct m0_tlink f_linkage;
        ...
};

then, a "list head" has to be embedded in bar:

struct bar {
        ...
        // list of foo-s, linked through foo::f_linkage
        struct m0_tl b_list;
        ...
};

now, define a tlist type:

static const struct m0_tl_descr foobar_list = {
        .td_name        = "foo-s of bar",
        .td_link_offset = offsetof(struct foo, f_linkage),
        .td_head_magic  = 0x666f6f6261726865 // "foobarhe"
};

This defines the simplest form of tlist without magic checking in list links (the magic embedded in a list head is checked anyway). To add magic checking, place a magic field in foo:

struct foo {
        ...
        uint64_t f_magic;
        ...
};
static const struct m0_tl_descr foobar_list = {
        ...
        .td_link_magic_offset = offsetof(struct foo, f_magic),
        .td_link_magic        = 0x666f6f6261726c69 // "foobarli"
};

Magic field can be shared by multiple tlist links embedded in the same object and can be used for other sanity checking. An "outermost" finaliser function must clear the magic as its last step to catch use-after-fini errors.

Now, one can populate and manipulate foo-bar lists:

struct bar  B;
struct foo  F;
struct foo *scan;
m0_tlist_init(&B.b_list);
m0_tlink_init(&F.f_linkage);
m0_tlist_add(&foobar_list, &B.b_list, &F);
M0_ASSERT(m0_tl_contains(&foobar_list, &B.b_list, &F));
m0_tlist_for(&foobar_list, &B.b_list, scan)
        M0_ASSERT(scan == &F);
m0_tlist_endfor;

Note: Differently from m0_list, tlist heads and links must be initialised before use, even when first usage overwrites the entity completely. This allows stronger checking in tlist manipulation functions.

Type-safe macros.

M0_TL_DESCR_DECLARE(), M0_TL_DECLARE(), M0_TL_DESCR_DEFINE() and M0_TL_DEFINE() macros generate versions of tlist interface tailored for a particular use case.

4 separate macros are necessary for flexibility. They should be used in exactly one of the following ways for any given typed list:

- static tlist, used in a single module only: M0_TL_DEFINE() and
  M0_TL_DESCR_DEFINE() with scope "static" in the module .c file;

- tlist exported from a module: M0_TL_DEFINE() and M0_TL_DESCR_DEFINE()
  with scope "" in .c file and M0_TL_DESCR_DECLARE(), M0_TL_DECLARE()
  with scope "extern" in .h file;

- tlist exported from a module as a collection of inline functions:
  M0_TL_DESCR_DEFINE() in .c file and M0_TL_DESCR_DECLARE() with scope
  "extern" followed by M0_TL_DEFINE() with scope "static inline" in .h
  file.

Use m0_tl_for() and m0_tl_endfor() to iterate over lists generated by M0_TL_DECLARE() and M0_TL_DEFINE().

Macro Definition Documentation

◆ __AUN

#define __AUN __attribute__((unused))

Definition at line 530 of file tlist.h.

◆ M0_TL_DECLARE

#define M0_TL_DECLARE	(	name,
		scope,
		amb_type
	)

Declares a version of tlist interface with definitions adjusted to take parameters of a specified ambient type (rather than void) and to hide m0_tl_descr from signatures.

M0_TL_DECLARE(foo, static, struct foo);

declares

static void foo_tlist_init(struct m0_tl *head);
static void foo_tlink_init(struct foo *amb);
static void foo_tlist_move(struct m0_tl *list, struct foo *amb);
static struct foo *foo_tlist_head(const struct m0_tl *list);

&c.

See also: M0_TL_DEFINE(); M0_TL_DESCR_DEFINE()

Definition at line 495 of file tlist.h.

◆ M0_TL_DEFINE

#define M0_TL_DEFINE	(	name,
		scope,
		amb_type
	)

Defines functions declared by M0_TL_DECLARE().

The definitions generated assume that tlist descriptor, defined by M0_TL_DESC_DEFINED() is in scope.

Definition at line 550 of file tlist.h.

◆ M0_TL_DESCR

#define M0_TL_DESCR	(	name,
		ambient_type,
		link_field,
		link_magic_field,
		link_magic,
		head_magic
	)

Value:

{                                                                       \
        .td_name              = name,                                   \
        .td_link_offset       = offsetof(ambient_type, link_field),     \
        .td_link_magic_offset = offsetof(ambient_type, link_magic_field), \
        .td_link_magic        = link_magic,                             \
        .td_head_magic        = head_magic,                             \
        .td_container_size    = sizeof(ambient_type)                    \
};                                                                      \
									\
M0_BASSERT(M0_HAS_TYPE(M0_FIELD_VALUE(ambient_type, link_field),        \
                       struct m0_tlink));                               \
M0_BASSERT(M0_HAS_TYPE(M0_FIELD_VALUE(ambient_type, link_magic_field),  \
                       uint64_t))

Definition at line 231 of file tlist.h.

◆ M0_TL_DESCR_DECLARE

#define M0_TL_DESCR_DECLARE	(	name,
		scope
	)	scope const struct m0_tl_descr name ## _tl

Definition at line 469 of file tlist.h.

◆ M0_TL_DESCR_DEFINE

#define M0_TL_DESCR_DEFINE	(	name,
		hname,
		scope,
		amb_type,
		amb_link_field,
		amb_magic_field,
		amb_magic,
		head_magic
	)

Value:

scope const struct m0_tl_descr name ## _tl = M0_TL_DESCR(hname,         \
                                                         amb_type,      \
                                                         amb_link_field, \
                                                         amb_magic_field, \
                                                         amb_magic,     \
                                                         head_magic)

Defines a tlist descriptor (m0_tl_descr) for a particular ambient type.

Definition at line 535 of file tlist.h.

◆ m0_tl_endfor

#define m0_tl_endfor m0_tlist_endfor

Terminates m0_tl_for() loop.

Definition at line 700 of file tlist.h.

◆ m0_tl_exists

#define m0_tl_exists	(	name,
		var,
		head,
		...
	)	(!m0_tl_forall(name, var, head, !({ __VA_ARGS__ ; })))

Returns a disjunction (logical OR) of an expression, evaluated for each list element.

See also: m0_tl_forall()

Definition at line 774 of file tlist.h.

◆ m0_tl_find

#define m0_tl_find	(	name,
		var,
		head,
		...
	)

Value:

({                                                      \
        typeof (name ## _tlist_head(NULL)) var;         \
							\
	m0_tl_for(name, head, var) {                   \
                if (({ __VA_ARGS__ ; }))                \
                        break;                          \
        } m0_tlist_endfor;                              \
        var;                                            \
})

Returns the list element that satisfies given condition. Returns NULL if no such element is found.

Example:

return m0_tl_find(seg, seg, &dom->bd_segs, seg->bs_addr == addr);

See also: m0_tl_forall()

Definition at line 757 of file tlist.h.

◆ m0_tl_for

#define m0_tl_for	(	name,
		head,
		obj
	)	m0_tlist_for(& name ## _tl, head, obj)

A version of m0_tlist_for() to use with tailored lists.

m0_tl_for() loop is terminated with m0_tl_endfor().

Definition at line 695 of file tlist.h.

◆ m0_tl_forall

#define m0_tl_forall	(	name,
		var,
		head,
		...
	)

Value:

({                                                      \
        typeof (name ## _tlist_head(NULL)) var;         \
							\
	m0_tl_for(name, head, var) {                   \
                if (!({ __VA_ARGS__ ; }))               \
                        break;                          \
        } m0_tlist_endfor;                              \
        var == NULL;                                    \
})

Returns a conjunction (logical AND) of an expression evaluated for each list element.

Declares a variable named "var" of list ambient object type in a new scope and evaluates user-supplied expression (the last argument) with "var" iterated over successive list elements, while this expression returns true. Returns true iff the whole list was iterated over.

The list can be modified by the user-supplied expression.

This function is useful for invariant checking.

bool foo_invariant(const struct foo *f)
{
        return m0_tl_forall(bar, b, &f->f_bars,
                            b->b_count > 0 && b->b_parent == f);
}

See also: m0_forall(), m0_tlist_forall(), m0_list_forall(), m0_list_entry_forall().

Definition at line 735 of file tlist.h.

◆ m0_tl_teardown

#define m0_tl_teardown	(	name,
		head,
		obj
	)	while (((obj) = name ## _tlist_pop(head)) != NULL)

Empties the list, by taking the list head, assigning it to "obj" and removing it from the list, until the list is empty.

Note: this doesn't require terminating macro.

Definition at line 708 of file tlist.h.

◆ m0_tlist_endfor

#define m0_tlist_endfor ;(void)__tl; } while (0)

Terminates m0_tlist_for() loop.

Definition at line 448 of file tlist.h.

◆ m0_tlist_for

#define m0_tlist_for	(	descr,
		head,
		obj
	)

Value:

do {                                                                    \
        void *__tl;                                                     \
        const struct m0_tl *__head = (head);                            \
                                                                        \
        for (obj = m0_tlist_head(descr, __head);                        \
             obj != NULL &&                                             \
             ((void)(__tl = m0_tlist_next(descr, __head, obj)), true);  \
             obj = __tl)

Iterates over elements of list of type , assigning them in order (from head to tail) to .

It is safe to delete the "current" object in the body of the loop or modify the portion of the list preceding the current element. It is not safe to modify the list after the current point.

m0_tlist_for(&foobar_list, &B.b_list, foo)
        sum += foo->f_value;
m0_tlist_endfor;
m0_tlist_for(&foobar_list, &B.b_list, foo) {
        if (foo->f_value % sum == 0)
                m0_tlist_del(&foobar_list, foo);
} m0_tlist_endfor;

m0_tlist_for() macro has a few points of technical interest:

- it introduces a scope to declare a temporary variable to hold the
  pointer to a "next" list element. The undesirable result of this is
  that the loop has to be terminated by the matching m0_tlist_endfor
  macro, closing the hidden scope. An alternative would be to use C99
  syntax for iterative statement, which allows a declaration in the
  for-loop header. Unfortunately, even though C99 mode can be enforced
  for compilation of linux kernel modules (by means of CFLAGS_MODULE),
  the kernel doesn't compile correctly in this mode;

- "inventive" use of comma expression in the loop condition allows to
  calculate next element only once and only when the current element is
  not NULL.

See also: m0_tlist_endfor

Definition at line 435 of file tlist.h.

◆ m0_tlist_forall

#define m0_tlist_forall	(	descr,
		var,
		head,
		...
	)

Value:

({                                              \
        void *var;                              \
						\
	m0_tlist_for(descr, head, var) {       \
                if (!({ __VA_ARGS__ ; }))       \
                        break;                  \
        } m0_tlist_endfor;                      \
        var == NULL;                            \
})

Returns a conjunction (logical AND) of an expression evaluated for each list element.

Note: This is not the macro you are interested in. Look at m0_tl_forall().

See also: m0_forall(), m0_tl_forall(), m0_list_forall(), m0_list_entry_forall().

Definition at line 458 of file tlist.h.

Function Documentation

◆ __link()

static struct m0_list_link * __link	(	const struct m0_tl_descr *	d,
		const void *	obj
	)

static

Returns the address of a link embedded in an ambient object.

Definition at line 281 of file tlist.c.

Here is the caller graph for this function:

◆ amb()

static void * amb	(	const struct m0_tl_descr *	d,
		struct m0_list_link *	link
	)

static

Casts a link to its ambient object.

Definition at line 291 of file tlist.c.

Here is the caller graph for this function:

◆ m0_tlink_del_fini()

M0_INTERNAL void m0_tlink_del_fini	(	const struct m0_tl_descr *	d,
		void *	obj
	)

Definition at line 90 of file tlist.c.

Here is the call graph for this function:

◆ m0_tlink_fini()

M0_INTERNAL void m0_tlink_fini	(	const struct m0_tl_descr *	d,
		void *	obj
	)

Definition at line 85 of file tlist.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ m0_tlink_init()

M0_INTERNAL void m0_tlink_init	(	const struct m0_tl_descr *	d,
		void *	obj
	)

Definition at line 63 of file tlist.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ m0_tlink_init_at()

M0_INTERNAL void m0_tlink_init_at	(	const struct m0_tl_descr *	d,
		void *	obj,
		struct m0_tl *	list
	)

Definition at line 71 of file tlist.c.

Here is the call graph for this function:

◆ m0_tlink_init_at_tail()

M0_INTERNAL void m0_tlink_init_at_tail	(	const struct m0_tl_descr *	d,
		void *	obj,
		struct m0_tl *	list
	)

Definition at line 78 of file tlist.c.

Here is the call graph for this function:

◆ m0_tlink_invariant()

M0_INTERNAL bool m0_tlink_invariant	(	const struct m0_tl_descr *	d,
		const void *	obj
	)

Definition at line 275 of file tlist.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ m0_tlink_is_in()

M0_INTERNAL bool m0_tlink_is_in	(	const struct m0_tl_descr *	d,
		const void *	obj
	)

Definition at line 103 of file tlist.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ m0_tlist_add()

M0_INTERNAL void m0_tlist_add	(	const struct m0_tl_descr *	d,
		struct m0_tl *	list,
		void *	obj
	)

Adds an element to the beginning of a list.

Precondition: !m0_tlink_is_in(d, obj)

Postcondition: m0_tlink_is_in(d, obj)

Definition at line 125 of file tlist.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ m0_tlist_add_after()

M0_INTERNAL void m0_tlist_add_after	(	const struct m0_tl_descr *	d,
		void *	obj,
		void *	next
	)

Adds an element after another element of the list.

Precondition: !m0_tlink_is_in(d, next)

Postcondition: m0_tlink_is_in(d, next)

Definition at line 141 of file tlist.c.

Here is the call graph for this function:

◆ m0_tlist_add_before()

M0_INTERNAL void m0_tlist_add_before	(	const struct m0_tl_descr *	d,
		void *	obj,
		void *	next
	)

Adds an element before another element of the list.

Precondition: !m0_tlink_is_in(d, next)

Postcondition: m0_tlink_is_in(d, next)

Definition at line 149 of file tlist.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ m0_tlist_add_tail()

M0_INTERNAL void m0_tlist_add_tail	(	const struct m0_tl_descr *	d,
		struct m0_tl *	list,
		void *	obj
	)

Adds an element to the end of a list.

Precondition: !m0_tlink_is_in(d, obj)

Postcondition: m0_tlink_is_in(d, obj)

Definition at line 133 of file tlist.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ m0_tlist_contains()

M0_INTERNAL bool m0_tlist_contains	(	const struct m0_tl_descr *	d,
		const struct m0_tl *	list,
		const void *	obj
	)

Definition at line 109 of file tlist.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ m0_tlist_del()

M0_INTERNAL void m0_tlist_del	(	const struct m0_tl_descr *	d,
		void *	obj
	)

Deletes an element from the list.

Precondition: m0_tlink_is_in(d, obj)

Postcondition: !m0_tlink_is_in(d, obj)

Definition at line 157 of file tlist.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ m0_tlist_fini()

M0_INTERNAL void m0_tlist_fini	(	const struct m0_tl_descr *	d,
		struct m0_tl *	list
	)

Definition at line 53 of file tlist.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ m0_tlist_head()

void * m0_tlist_head	(	const struct m0_tl_descr *	d,
		const struct m0_tl *	list
	)

Returns the first element of a list or NULL if the list is empty.

Definition at line 187 of file tlist.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ m0_tlist_init()

M0_INTERNAL void m0_tlist_init	(	const struct m0_tl_descr *	d,
		struct m0_tl *	list
	)

Definition at line 46 of file tlist.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ m0_tlist_invariant()

M0_INTERNAL bool m0_tlist_invariant	(	const struct m0_tl_descr *	d,
		const struct m0_tl *	list
	)

Definition at line 236 of file tlist.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ m0_tlist_invariant_ext()

M0_INTERNAL bool m0_tlist_invariant_ext	(	const struct m0_tl_descr *	d,
		const struct m0_tl *	list,
		bool()(const void , void *)	check,
		void *	datum
	)

Definition at line 259 of file tlist.c.

Here is the call graph for this function:

◆ m0_tlist_is_empty()

M0_INTERNAL bool m0_tlist_is_empty	(	const struct m0_tl_descr *	d,
		const struct m0_tl *	list
	)

Definition at line 96 of file tlist.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ m0_tlist_length()

M0_INTERNAL size_t m0_tlist_length	(	const struct m0_tl_descr *	d,
		const struct m0_tl *	list
	)

Definition at line 117 of file tlist.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ m0_tlist_move()

M0_INTERNAL void m0_tlist_move	(	const struct m0_tl_descr *	d,
		struct m0_tl *	list,
		void *	obj
	)

Moves an element from a list to the head of (possibly the same) list.

Precondition: m0_tlink_is_in(d, obj)

Postcondition: m0_tlink_is_in(d, obj)

Definition at line 170 of file tlist.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ m0_tlist_move_tail()

M0_INTERNAL void m0_tlist_move_tail	(	const struct m0_tl_descr *	d,
		struct m0_tl *	list,
		void *	obj
	)

Moves an element from a list to the tail of (possibly the same) list.

Precondition: m0_tlink_is_in(d, obj)

Postcondition: m0_tlink_is_in(d, obj)

Definition at line 179 of file tlist.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ m0_tlist_next()

void * m0_tlist_next	(	const struct m0_tl_descr *	d,
		const struct m0_tl *	list,
		const void *	obj
	)

Returns the next element of a list or NULL if is the last element.

Precondition: m0_tlist_contains(d, list, obj)

Definition at line 218 of file tlist.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ m0_tlist_pop()

M0_INTERNAL void * m0_tlist_pop	(	const struct m0_tl_descr *	d,
		const struct m0_tl *	list
	)

Removes and returns the head the list or NULL.

Definition at line 197 of file tlist.c.

Here is the call graph for this function:

◆ m0_tlist_prev()

M0_INTERNAL void * m0_tlist_prev	(	const struct m0_tl_descr *	d,
		const struct m0_tl *	list,
		const void *	obj
	)

Returns the previous element of a list or NULL if is the first element.

Precondition: m0_tlist_contains(d, list, obj)

Definition at line 227 of file tlist.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ m0_tlist_remove()

M0_INTERNAL void m0_tlist_remove	(	const struct m0_tl_descr *	d,
		void *	obj
	)

Deletes at element from the list, if it was there.

Postcondition: !m0_tlink_is_in(d, obj)

Definition at line 163 of file tlist.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ m0_tlist_tail()

M0_INTERNAL void * m0_tlist_tail	(	const struct m0_tl_descr *	d,
		const struct m0_tl *	list
	)

Returns the last element of a list or NULL if the list is empty.

Definition at line 207 of file tlist.c.

Here is the call graph for this function:

◆ M0_XCA_DOMAIN()

struct m0_tl_descr M0_XCA_DOMAIN ( be )

◆ magic()

static uint64_t magic	(	const struct m0_tl_descr *	d,
		const void *	obj
	)

static

Returns the value of the magic field in an ambient object

Definition at line 286 of file tlist.c.

Here is the caller graph for this function:

Variable Documentation

◆ t_head [1/2]

struct m0_list t_head

Underlying m0_list.

Definition at line 258 of file tlist.h.

◆ t_head [2/2]

struct m0_list t_head

Underlying m0_list.

Definition at line 298 of file tlist.h.

◆ t_link [1/2]

struct m0_list_link t_link

Underlying m0_list link.

Definition at line 266 of file tlist.h.

◆ t_link [2/2]

struct m0_list_link t_link

Underlying m0_list link.

Definition at line 293 of file tlist.h.

◆ t_magic [1/2]

uint64_t t_magic

Head magic. This is set to m0_tl::td_head_magic and verified by the list invariant.

Definition at line 256 of file tlist.h.

◆ t_magic [2/2]

uint64_t t_magic

Head magic. This is set to m0_tl::td_head_magic and verified by the list invariant.

Definition at line 296 of file tlist.h.

◆ td_container_size [1/2]

size_t td_container_size

Size of the ambient object.

Definition at line 228 of file tlist.h.

◆ td_container_size [2/2]

size_t td_container_size

Size of the ambient object.

Definition at line 315 of file tlist.h.

◆ td_head_magic [1/2]

uint64_t td_head_magic

Magic stored in m0_tl::t_magic and checked on all tlist operations.

Definition at line 226 of file tlist.h.

◆ td_head_magic [2/2]

uint64_t td_head_magic

Magic stored in m0_tl::t_magic and checked on all tlist operations.

Definition at line 313 of file tlist.h.

◆ td_link_magic [1/2]

uint64_t td_link_magic

Magic stored in an ambient object.

If this field is 0, link magic checking is disabled.

Definition at line 221 of file tlist.h.

◆ td_link_magic [2/2]

uint64_t td_link_magic

Magic stored in an ambient object.

If this field is 0, link magic checking is disabled.

Definition at line 308 of file tlist.h.

◆ td_link_magic_offset [1/2]

int td_link_magic_offset

Offset of magic field in the ambient object. This is used only when link magic checking is on.

See also: m0_tl_descr::td_link_magic

Definition at line 215 of file tlist.h.

◆ td_link_magic_offset [2/2]

int td_link_magic_offset

Offset of magic field in the ambient object. This is used only when link magic checking is on.

See also: m0_tl_descr::td_link_magic

Definition at line 302 of file tlist.h.

◆ td_link_offset [1/2]

int td_link_offset

Offset of list link (m0_tlink) in the ambient object.

Definition at line 208 of file tlist.h.

◆ td_link_offset [2/2]

int td_link_offset

Offset of list link (m0_tlink) in the ambient object.

Definition at line 295 of file tlist.h.

◆ td_name [1/2]

const char* td_name

Human-readable list name, used for error messages.

Definition at line 206 of file tlist.h.

◆ td_name [2/2]

const char* td_name

Human-readable list name, used for error messages.

Definition at line 293 of file tlist.h.

Data Structures

Macros

Functions

Variables

Detailed Description

Macro Definition Documentation

◆ __AUN

◆ M0_TL_DECLARE

◆ M0_TL_DEFINE

◆ M0_TL_DESCR

◆ M0_TL_DESCR_DECLARE

◆ M0_TL_DESCR_DEFINE

◆ m0_tl_endfor

◆ m0_tl_exists

◆ m0_tl_find

◆ m0_tl_for

◆ m0_tl_forall

◆ m0_tl_teardown

◆ m0_tlist_endfor

◆ m0_tlist_for

◆ m0_tlist_forall

Function Documentation

◆ __link()

◆ amb()

◆ m0_tlink_del_fini()

◆ m0_tlink_fini()

◆ m0_tlink_init()

◆ m0_tlink_init_at()

◆ m0_tlink_init_at_tail()

◆ m0_tlink_invariant()

◆ m0_tlink_is_in()

◆ m0_tlist_add()

◆ m0_tlist_add_after()

◆ m0_tlist_add_before()

◆ m0_tlist_add_tail()

◆ m0_tlist_contains()

◆ m0_tlist_del()

◆ m0_tlist_fini()

◆ m0_tlist_head()

◆ m0_tlist_init()

◆ m0_tlist_invariant()

◆ m0_tlist_invariant_ext()

◆ m0_tlist_is_empty()

◆ m0_tlist_length()

◆ m0_tlist_move()

◆ m0_tlist_move_tail()

◆ m0_tlist_next()

◆ m0_tlist_pop()

◆ m0_tlist_prev()

◆ m0_tlist_remove()

◆ m0_tlist_tail()

◆ M0_XCA_DOMAIN()

◆ magic()

Variable Documentation

◆ t_head [1/2]

◆ t_head [2/2]

◆ t_link [1/2]

◆ t_link [2/2]

◆ t_magic [1/2]

◆ t_magic [2/2]

◆ td_container_size [1/2]

◆ td_container_size [2/2]

◆ td_head_magic [1/2]

◆ td_head_magic [2/2]

◆ td_link_magic [1/2]

◆ td_link_magic [2/2]

◆ td_link_magic_offset [1/2]

◆ td_link_magic_offset [2/2]

◆ td_link_offset [1/2]

◆ td_link_offset [2/2]

◆ td_name [1/2]

◆ td_name [2/2]
