Data Structures
struct	m0_stob_io_desc

struct	m0_io_fom_cob_rw

struct	m0_io_fom_cob_rw_state_transition

Enumerations
enum	m0_avi_ios_io_labels { M0_AVI_IOS_IO_DESCR = M0_AVI_IOS_RANGE_START + 1, M0_AVI_IOS_IO_ATTR_FOMCRW_NDESC, M0_AVI_IOS_IO_ATTR_FOMCRW_TOTAL_IOIVEC_CNT, M0_AVI_IOS_IO_ATTR_FOMCRW_COUNT, M0_AVI_IOS_IO_ATTR_FOMCRW_BYTES, M0_AVI_IOS_IO_ATTR_FOMCOB_FOP_TYPE, M0_AVI_IOS_IO_ATTR_FOMCOB_GFID_CONT, M0_AVI_IOS_IO_ATTR_FOMCOB_GFID_KEY, M0_AVI_IOS_IO_ATTR_FOMCOB_CFID_CONT, M0_AVI_IOS_IO_ATTR_FOMCOB_CFID_KEY }

enum	{ IO_FOM_STOB_KEY_MAX = 0x10000000ULL }

enum	m0_io_fom_cob_rw_phases { M0_FOPH_IO_FOM_PREPARE = M0_FOPH_TYPE_SPECIFIC, M0_FOPH_IO_FOM_BUFFER_ACQUIRE, M0_FOPH_IO_FOM_BUFFER_WAIT, M0_FOPH_IO_STOB_INIT, M0_FOPH_IO_STOB_WAIT, M0_FOPH_IO_ZERO_COPY_INIT, M0_FOPH_IO_ZERO_COPY_WAIT, M0_FOPH_IO_BUFFER_RELEASE, M0_FOPH_IO_SYNC }

Functions
	M0_TL_DESCR_DEFINE (stobio, "STOB I/O", static, struct m0_stob_io_desc, siod_linkage, siod_magic, M0_STOB_IO_DESC_LINK_MAGIC, M0_STOB_IO_DESC_HEAD_MAGIC)

	M0_TL_DEFINE (stobio, static, struct m0_stob_io_desc)

	M0_TL_DESCR_DEFINE (netbufs, "Aquired net buffers", static, struct m0_net_buffer, nb_extern_linkage, nb_magic, M0_NET_BUFFER_LINK_MAGIC, M0_IOS_NET_BUFFER_HEAD_MAGIC)

	M0_TL_DEFINE (netbufs, static, struct m0_net_buffer)

	M0_TL_DESCR_DEFINE (rpcbulkbufs, "rpc bulk buffers", static, struct m0_rpc_bulk_buf, bb_link, bb_magic, M0_RPC_BULK_BUF_MAGIC, M0_RPC_BULK_MAGIC)

	M0_TL_DEFINE (rpcbulkbufs, static, struct m0_rpc_bulk_buf)

	M0_TL_DESCR_DECLARE (bufferpools, M0_EXTERN)

	M0_TL_DECLARE (bufferpools, M0_EXTERN, struct m0_rios_buffer_pool)

M0_INTERNAL bool	m0_is_read_fop (const struct m0_fop *fop)

M0_INTERNAL bool	m0_is_write_fop (const struct m0_fop *fop)

M0_INTERNAL bool	m0_is_io_fop (const struct m0_fop *fop)

M0_INTERNAL struct m0_fop_cob_rw *	io_rw_get (struct m0_fop *fop)

M0_INTERNAL struct m0_fop_cob_rw_reply *	io_rw_rep_get (struct m0_fop *fop)

M0_INTERNAL bool	m0_is_cob_create_fop (const struct m0_fop *fop)

M0_INTERNAL bool	m0_is_cob_delete_fop (const struct m0_fop *fop)

static int	m0_io_fom_cob_rw_create (struct m0_fop fop, struct m0_fom out, struct m0_reqh reqh)

static int	m0_io_fom_cob_rw_tick (struct m0_fom *fom)

static void	m0_io_fom_cob_rw_fini (struct m0_fom *fom)

static size_t	m0_io_fom_cob_rw_locality_get (const struct m0_fom *fom)

M0_INTERNAL const char *	m0_io_fom_cob_rw_service_name (struct m0_fom *fom)

static bool	m0_io_fom_cob_rw_invariant (const struct m0_io_fom_cob_rw *io)

static int	net_buffer_acquire (struct m0_fom *)

static int	io_prepare (struct m0_fom *)

static int	io_launch (struct m0_fom *)

static int	io_finish (struct m0_fom *)

static int	io_sync (struct m0_fom *fom)

static int	zero_copy_initiate (struct m0_fom *)

static int	zero_copy_finish (struct m0_fom *)

static int	net_buffer_release (struct m0_fom *)

static int	nbuf_release_done (struct m0_fom *fom, int still_required)

static int	cob_bytecount_increment (struct m0_cob cob, struct m0_cob_bckey key, uint64_t bytecount, struct m0_be_tx *tx)

static void	io_fom_addb2_descr (struct m0_fom *fom)

static bool	m0_stob_io_desc_invariant (const struct m0_stob_io_desc *stobio_desc)

static void	stobio_complete_cb (struct m0_fom_callback *cb)

M0_INTERNAL int	m0_io_cob_create (struct m0_cob_domain cdom, struct m0_fid fid, struct m0_fid pver, uint64_t lid, struct m0_be_tx tx)

static struct m0_cob_domain *	fom_cdom (struct m0_fom *fom)

M0_INTERNAL int	m0_io_cob_stob_create (struct m0_fom fom, struct m0_cob_domain cdom, struct m0_fid fid, struct m0_fid pver, uint64_t lid, bool crow, struct m0_cob **out)

static int	io_fom_cob2file (struct m0_fom fom, struct m0_fid fid, struct m0_file **out)

static int	align_bufvec (struct m0_fom fom, struct m0_bufvec obuf, struct m0_bufvec *ibuf, m0_bcount_t ivec_count, uint32_t bshift)

static int	fom_cob_locate (struct m0_fom *fom)

static int	stob_object_find (struct m0_fom *fom)

static void	stio_desc_fini (struct m0_stob_io_desc *stio_desc)

M0_INTERNAL uint64_t	m0_io_size (struct m0_stob_io *sio, uint32_t bshift)

static int	indexvec_wire2mem (struct m0_fom *fom)

static int	stob_io_create (struct m0_fom *fom)

static void	stob_io_destroy (struct m0_fom *fom)

static void	stob_be_credit (struct m0_fom *fom)

Variables
enum m0_avi_ios_io_labels	M0_XCA_ENUM

struct m0_fom_ops	ops

const struct m0_fom_type_ops	io_fom_type_ops

static struct m0_io_fom_cob_rw_state_transition	io_fom_read_st []

static const struct m0_io_fom_cob_rw_state_transition	io_fom_write_st []

struct m0_sm_state_descr	io_phases []

struct m0_sm_trans_descr	io_phases_trans []

struct m0_sm_conf	io_conf

Detailed Description

Fop state machine for IO operations

See also: fom; DLD of Bulk Server

FOP state machines for various IO operations like

Readv
Writev

Note: Naming convention: For operation xyz, the FOP is named as m0_fop_xyz, its corresponding reply FOP is named as m0_fop_xyz_rep and FOM is named as m0_fom_xyz. For each FOM type, its corresponding create, state and fini methods are named as m0_fom_xyz_create, m0_fom_xyz_state, m0_fom_xyz_fini respectively.

Enumeration Type Documentation

◆ anonymous enum

anonymous enum

Enumerator
IO_FOM_STOB_KEY_MAX	See also io_fom_cob_rw_fid2stob_map(), io_fom_cob_rw_stob2fid_map().

Definition at line 896 of file io_foms.c.

◆ m0_avi_ios_io_labels

enum m0_avi_ios_io_labels

Enumerator
M0_AVI_IOS_IO_DESCR
M0_AVI_IOS_IO_ATTR_FOMCRW_NDESC
M0_AVI_IOS_IO_ATTR_FOMCRW_TOTAL_IOIVEC_CNT
M0_AVI_IOS_IO_ATTR_FOMCRW_COUNT
M0_AVI_IOS_IO_ATTR_FOMCRW_BYTES
M0_AVI_IOS_IO_ATTR_FOMCOB_FOP_TYPE
M0_AVI_IOS_IO_ATTR_FOMCOB_GFID_CONT
M0_AVI_IOS_IO_ATTR_FOMCOB_GFID_KEY
M0_AVI_IOS_IO_ATTR_FOMCOB_CFID_CONT
M0_AVI_IOS_IO_ATTR_FOMCOB_CFID_KEY

Definition at line 38 of file io_addb2.h.

◆ m0_io_fom_cob_rw_phases

enum m0_io_fom_cob_rw_phases

The various phases for I/O FOM. complete FOM and reqh infrastructure is in place.

Enumerator
M0_FOPH_IO_FOM_PREPARE
M0_FOPH_IO_FOM_BUFFER_ACQUIRE
M0_FOPH_IO_FOM_BUFFER_WAIT
M0_FOPH_IO_STOB_INIT
M0_FOPH_IO_STOB_WAIT
M0_FOPH_IO_ZERO_COPY_INIT
M0_FOPH_IO_ZERO_COPY_WAIT
M0_FOPH_IO_BUFFER_RELEASE
M0_FOPH_IO_SYNC

Definition at line 241 of file io_foms.h.

Function Documentation

◆ align_bufvec()

static int align_bufvec	(	struct m0_fom *	fom,
		struct m0_bufvec *	obuf,
		struct m0_bufvec *	ibuf,
		m0_bcount_t	ivec_count,
		uint32_t	bshift
	)

static

Copy aligned bufvec segments addresses from net buffer to stob bufvec. STOB I/O expects exact same number of bufvec as index vecs for I/O request. This function copies segment from network buffer with size same as ivec_count.

Parameters

fom	file operation machine instance.
obuf	pointer to bufvec from stobio object.
ibuf	pointer to bufve from network buffer from buffer pool.
ivec_count	number of vectors for stob I/O request.
bshift	shift value for current stob to align bufvecs.

Precondition: obuf != NULL; ibuf != NULL

Definition at line 1035 of file io_foms.c.

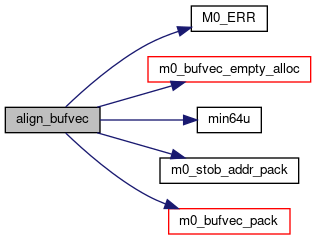

Here is the call graph for this function:

Here is the caller graph for this function:

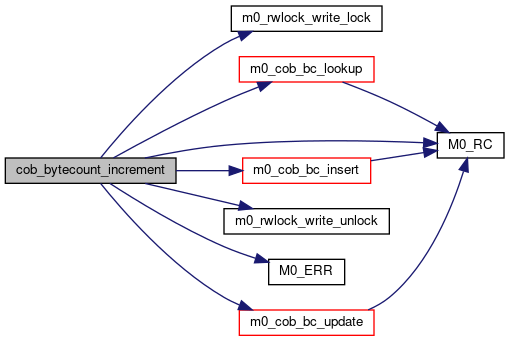

◆ cob_bytecount_increment()

static int cob_bytecount_increment	(	struct m0_cob *	cob,
		struct m0_cob_bckey *	key,
		uint64_t	bytecount,
		struct m0_be_tx *	tx
	)

static

Definition at line 2516 of file io_foms.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ fom_cdom()

static struct m0_cob_domain* fom_cdom ( struct m0_fom * fom )

static

Definition at line 941 of file io_foms.c.

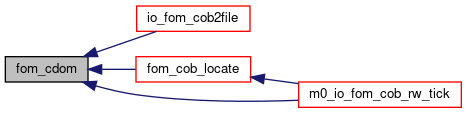

Here is the caller graph for this function:

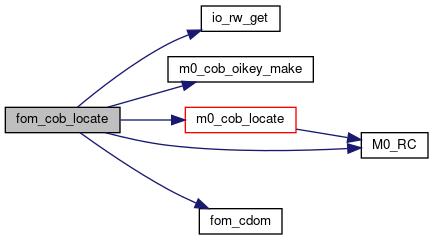

◆ fom_cob_locate()

static int fom_cob_locate ( struct m0_fom * fom )

static

Definition at line 1090 of file io_foms.c.

Here is the call graph for this function:

Here is the caller graph for this function:

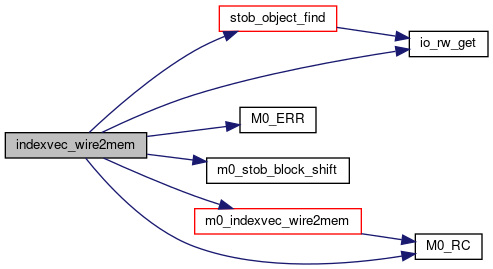

◆ indexvec_wire2mem()

static int indexvec_wire2mem ( struct m0_fom * fom )

static

Definition at line 2004 of file io_foms.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ io_finish()

static int io_finish ( struct m0_fom * fom )

static

This function finish STOB I/O. It's check for STOB I/O result and return back STOB instance.

Parameters

fom	instance file operation machine under execution

Precondition: fom != NULL; m0_fom_phase(fom) == M0_FOPH_IO_STOB_WAIT

Definition at line 1899 of file io_foms.c.

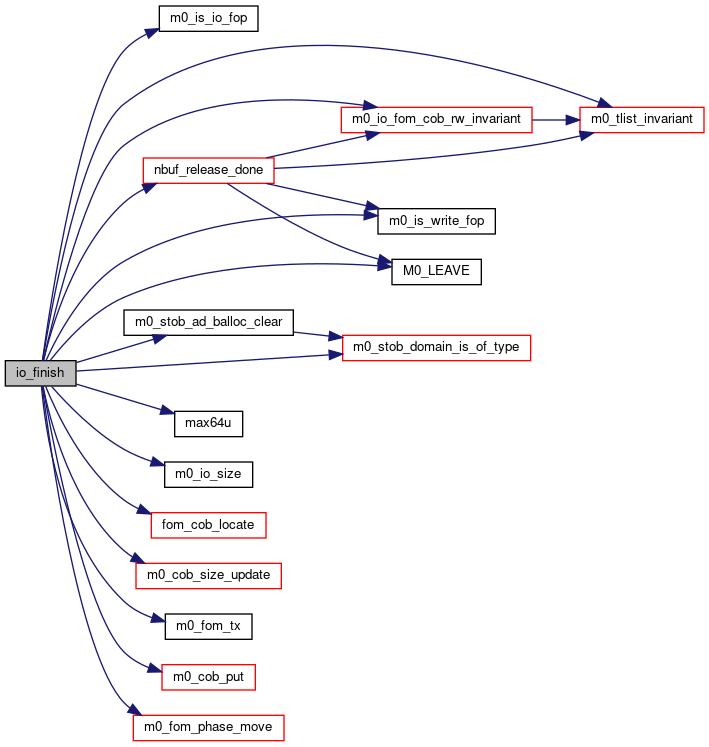

Here is the call graph for this function:

◆ io_fom_addb2_descr()

static void io_fom_addb2_descr ( struct m0_fom * fom )

static

Definition at line 2501 of file io_foms.c.

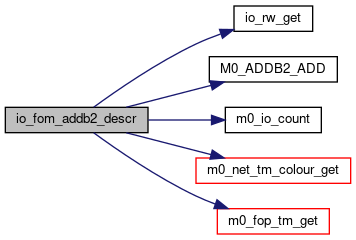

Here is the call graph for this function:

◆ io_fom_cob2file()

static int io_fom_cob2file	(	struct m0_fom *	fom,
		struct m0_fid *	fid,
		struct m0_file **	out
	)

static

Definition at line 995 of file io_foms.c.

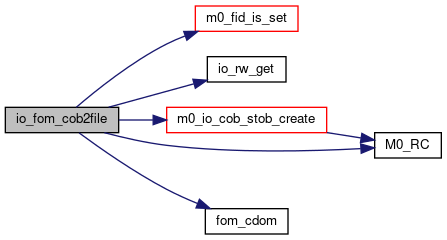

Here is the call graph for this function:

Here is the caller graph for this function:

◆ io_launch()

static int io_launch ( struct m0_fom * fom )

static

Launch STOB I/O Helper function to launch STOB I/O. This function initiates STOB I/O for all index vecs. STOB I/O signaled on channel in m0_stob_io::si_wait. There is a clink for each STOB I/O waiting on respective m0_stob_io::si_wait. For every STOB I/O completion call-back is launched to check its results and mark complete. After all STOB I/O completes call-back function send signal to FOM so that FOM gets out of wait-queue and placed in run-queue.

Parameters

fom	file operation machine

Precondition: fom != NULL; m0_fom_phase(fom) == M0_FOPH_IO_STOB_INIT

Definition at line 1696 of file io_foms.c.

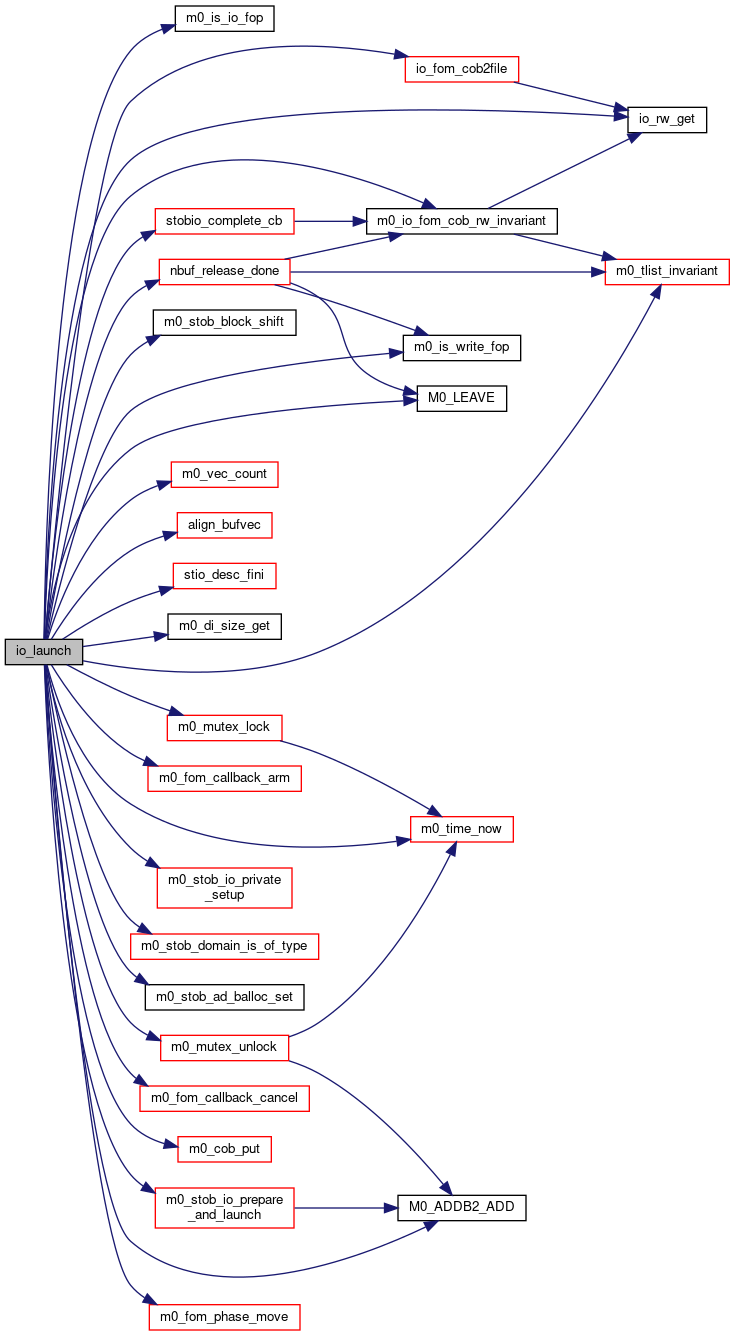

Here is the call graph for this function:

◆ io_prepare()

static int io_prepare ( struct m0_fom * fom )

static

Definition at line 1204 of file io_foms.c.

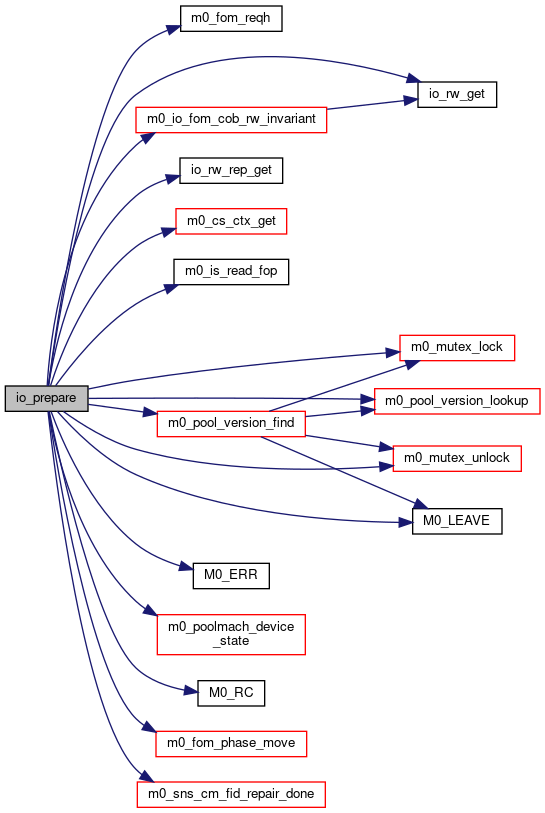

Here is the call graph for this function:

◆ io_rw_get()

M0_INTERNAL struct m0_fop_cob_rw * io_rw_get ( struct m0_fop * fop )

Definition at line 1037 of file io_fops.c.

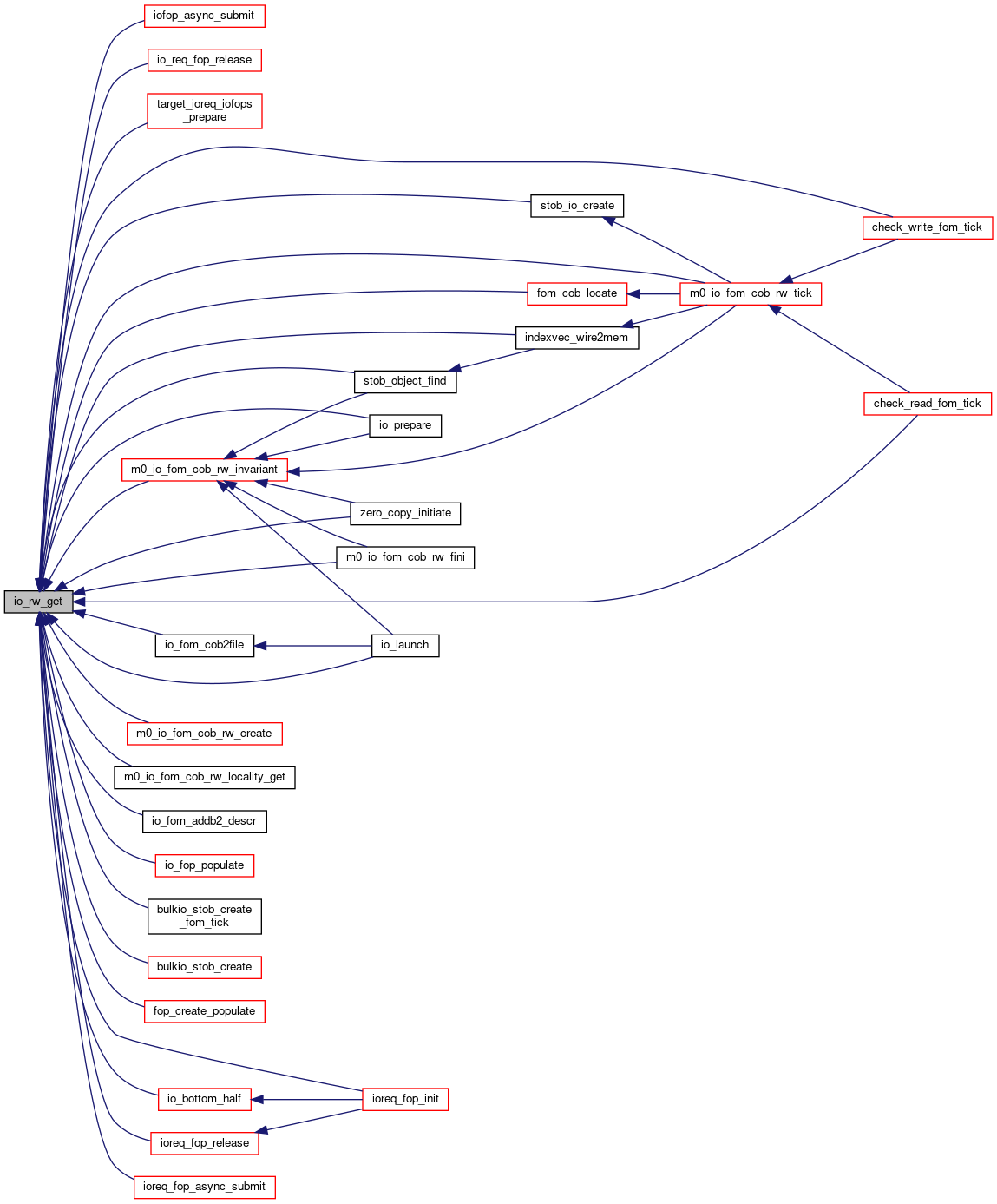

Here is the caller graph for this function:

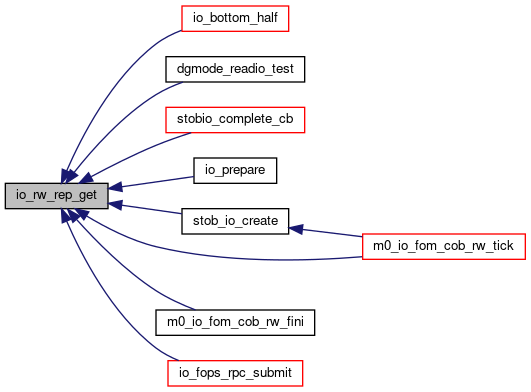

◆ io_rw_rep_get()

M0_INTERNAL struct m0_fop_cob_rw_reply * io_rw_rep_get ( struct m0_fop * fop )

Definition at line 1056 of file io_fops.c.

Here is the caller graph for this function:

◆ io_sync()

static int io_sync ( struct m0_fom * fom )

static

If necessary, waits until the transaction for this fom becomes persistent.

Definition at line 1985 of file io_foms.c.

Here is the call graph for this function:

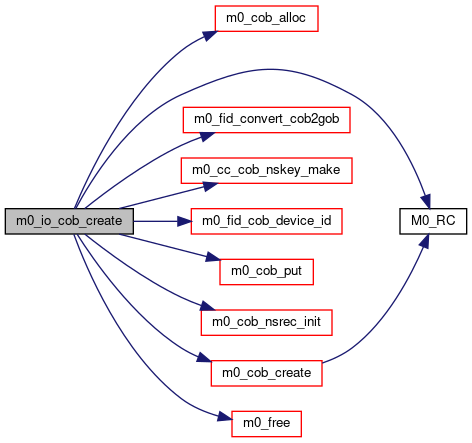

◆ m0_io_cob_create()

M0_INTERNAL int m0_io_cob_create	(	struct m0_cob_domain *	cdom,
		struct m0_fid *	fid,
		struct m0_fid *	pver,
		uint64_t	lid,
		struct m0_be_tx *	tx
	)

Definition at line 903 of file io_foms.c.

Here is the call graph for this function:

Here is the caller graph for this function:

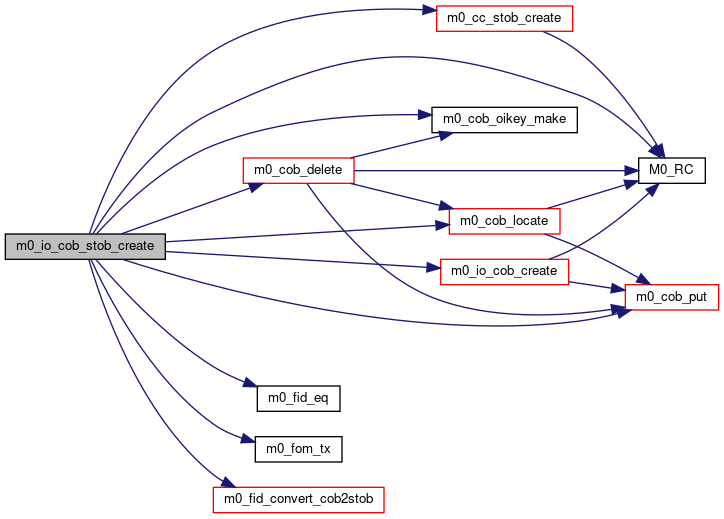

◆ m0_io_cob_stob_create()

M0_INTERNAL int m0_io_cob_stob_create	(	struct m0_fom *	fom,
		struct m0_cob_domain *	ios_cdom,
		struct m0_fid *	fid,
		struct m0_fid *	pver,
		uint64_t	lid,
		bool	crow,
		struct m0_cob **	out
	)

If cob of different version exists, it will delete it and recreate the cob with pool version pver. If crow is true, it will create the cob if it does not exist.

Todo:: delete stob too.

Definition at line 951 of file io_foms.c.

Here is the call graph for this function:

Here is the caller graph for this function:

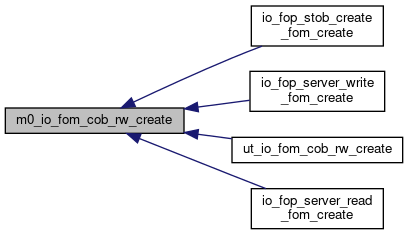

◆ m0_io_fom_cob_rw_create()

M0_INTERNAL int m0_io_fom_cob_rw_create	(	struct m0_fop *	fop,
		struct m0_fom **	out,
		struct m0_reqh *	reqh
	)

static

Create and initiate I/O FOM and return generic struct m0_fom Find the corresponding fom_type and associate it with m0_fom. Associate fop with fom type.

Parameters

fop	file operation packet need to process
out	file operation machine need to allocate and initiate

Precondition: fop != NULL; out != NULL

Definition at line 1144 of file io_foms.c.

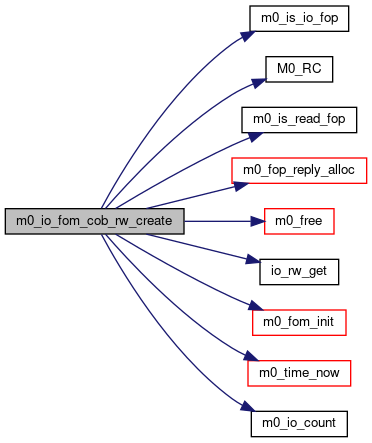

Here is the call graph for this function:

Here is the caller graph for this function:

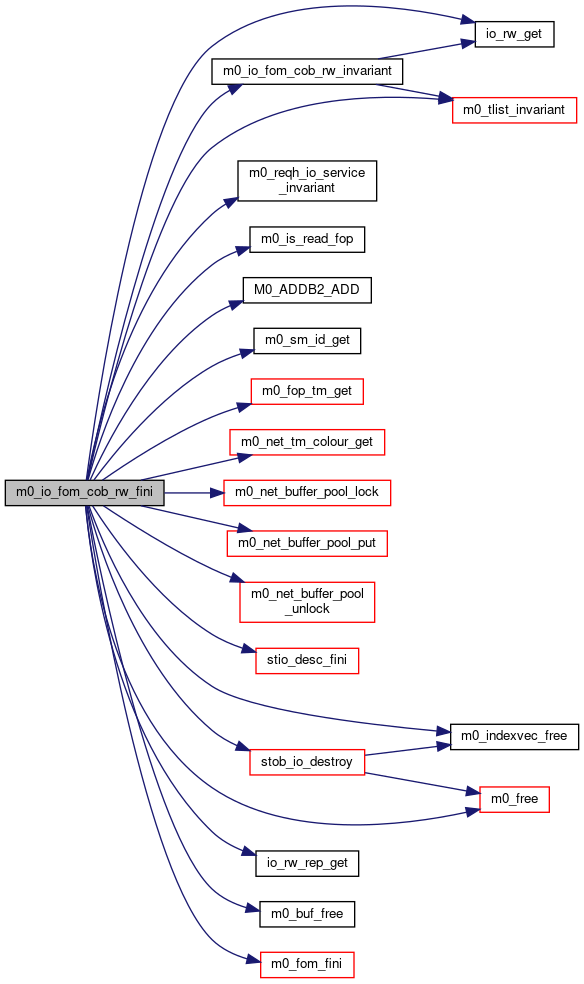

◆ m0_io_fom_cob_rw_fini()

static void m0_io_fom_cob_rw_fini ( struct m0_fom * fom )

static

Finalise of I/O file operation machine. This is the right place to free all resources acquired by FOM

Parameters

fom	instance file operation machine under execution

Precondition: fom != NULL

Definition at line 2396 of file io_foms.c.

Here is the call graph for this function:

◆ m0_io_fom_cob_rw_invariant()

static bool m0_io_fom_cob_rw_invariant ( const struct m0_io_fom_cob_rw * io )

static

Definition at line 830 of file io_foms.c.

Here is the call graph for this function:

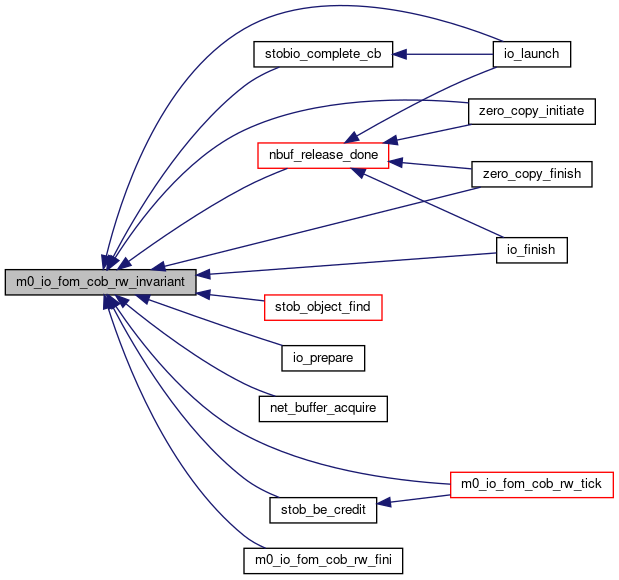

Here is the caller graph for this function:

◆ m0_io_fom_cob_rw_locality_get()

static size_t m0_io_fom_cob_rw_locality_get ( const struct m0_fom * fom )

static

Get locality of file operation machine.

Definition at line 2478 of file io_foms.c.

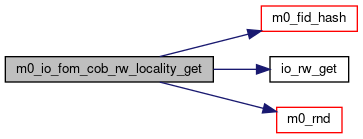

Here is the call graph for this function:

◆ m0_io_fom_cob_rw_service_name()

M0_INTERNAL const char * m0_io_fom_cob_rw_service_name ( struct m0_fom * fom )

Returns service name which executes this fom.

Parameters

fom	instance file operation machine under execution

Precondition: fom != NULL; fom->fo_fop != NULL

Returns string representing ioservice name given a fom.

Definition at line 2493 of file io_foms.c.

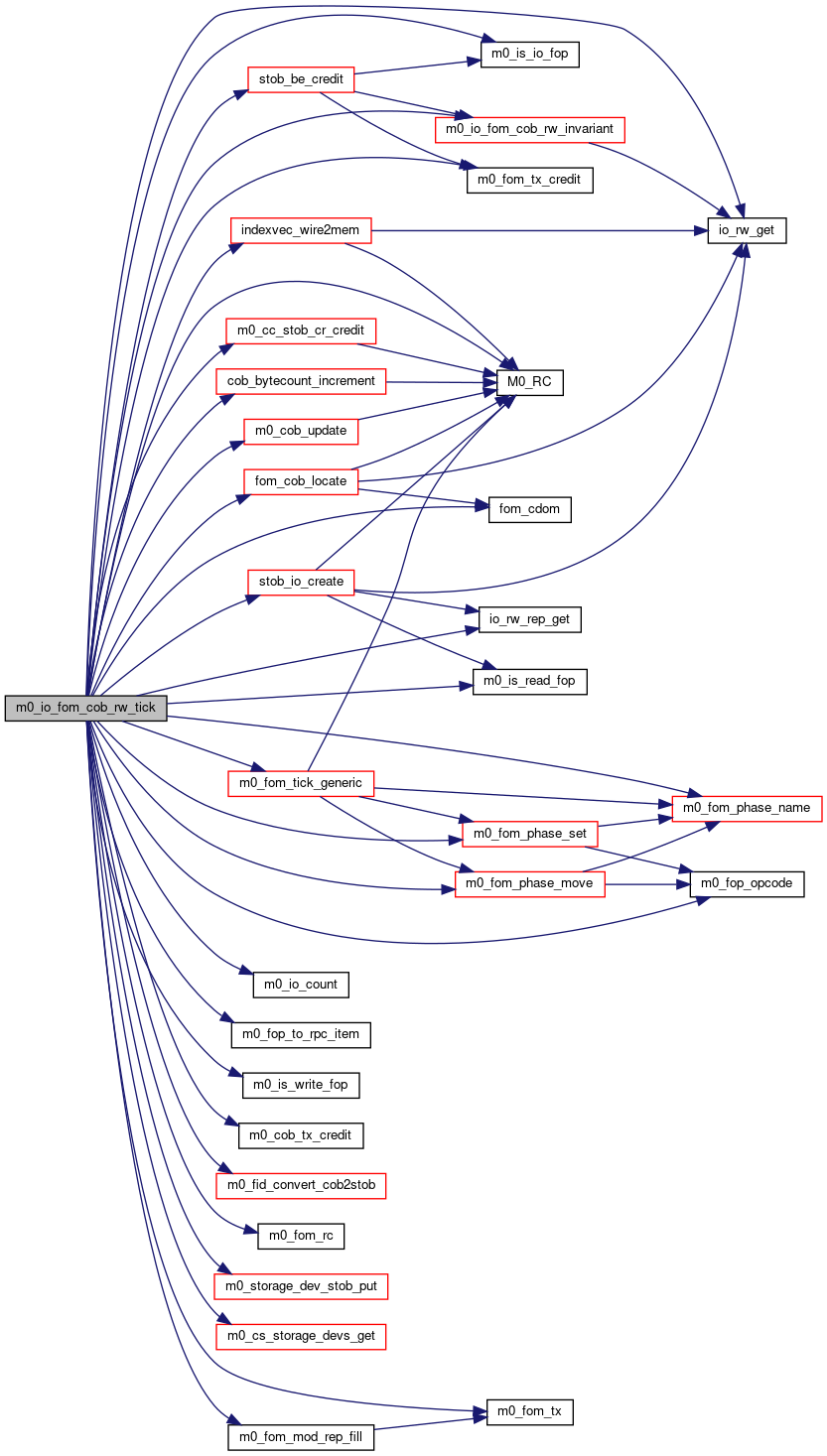

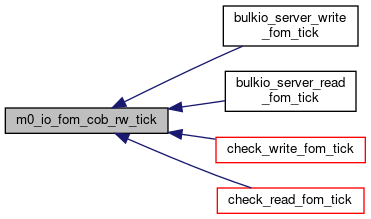

◆ m0_io_fom_cob_rw_tick()

static int m0_io_fom_cob_rw_tick ( struct m0_fom * fom )

static

State Transition function for I/O operation that executes on data server.

Parameters

fom	instance file operation machine under execution

Precondition: fom != NULL

XXX: Overlapping cob extentds are not accounted for during cob overwrite. IF a cob is overwritten, it will make cob size inaccurate.

Definition at line 2233 of file io_foms.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ m0_io_size()

M0_INTERNAL uint64_t m0_io_size	(	struct m0_stob_io *	sio,
		uint32_t	bshift
	)

Definition at line 1670 of file io_foms.c.

Here is the caller graph for this function:

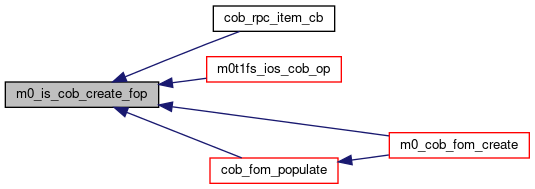

◆ m0_is_cob_create_fop()

M0_INTERNAL bool m0_is_cob_create_fop ( const struct m0_fop * fop )

Definition at line 950 of file io_fops.c.

Here is the caller graph for this function:

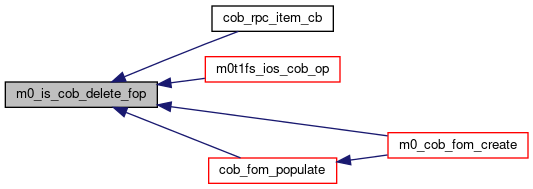

◆ m0_is_cob_delete_fop()

M0_INTERNAL bool m0_is_cob_delete_fop ( const struct m0_fop * fop )

Definition at line 957 of file io_fops.c.

Here is the caller graph for this function:

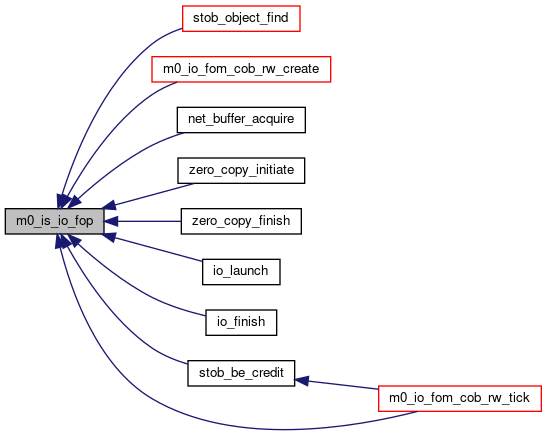

◆ m0_is_io_fop()

M0_INTERNAL bool m0_is_io_fop ( const struct m0_fop * fop )

Definition at line 928 of file io_fops.c.

Here is the caller graph for this function:

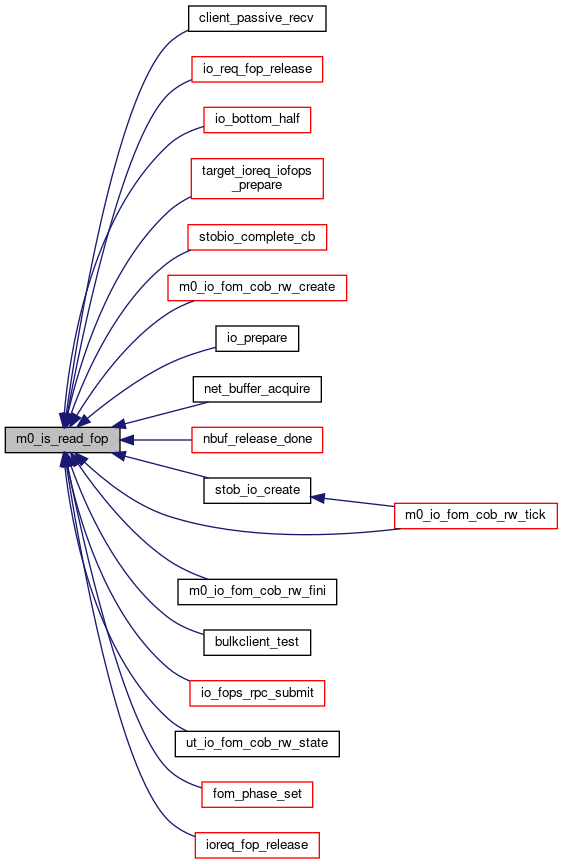

◆ m0_is_read_fop()

M0_INTERNAL bool m0_is_read_fop ( const struct m0_fop * fop )

Definition at line 916 of file io_fops.c.

Here is the caller graph for this function:

◆ m0_is_write_fop()

M0_INTERNAL bool m0_is_write_fop ( const struct m0_fop * fop )

Definition at line 922 of file io_fops.c.

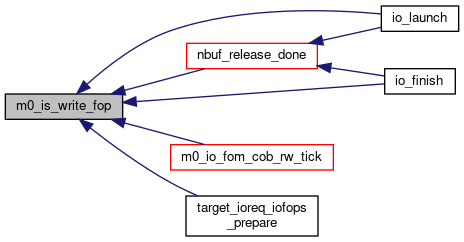

Here is the caller graph for this function:

◆ m0_stob_io_desc_invariant()

static bool m0_stob_io_desc_invariant ( const struct m0_stob_io_desc * stobio_desc )

static

Definition at line 851 of file io_foms.c.

Here is the caller graph for this function:

◆ M0_TL_DECLARE()

M0_TL_DECLARE	(	bufferpools	,
		M0_EXTERN	,
		struct m0_rios_buffer_pool
	)

◆ M0_TL_DEFINE() [1/3]

M0_TL_DEFINE	(	stobio	,
		static	,
		struct m0_stob_io_desc
	)

◆ M0_TL_DEFINE() [2/3]

M0_TL_DEFINE	(	netbufs	,
		static	,
		struct m0_net_buffer
	)

◆ M0_TL_DEFINE() [3/3]

M0_TL_DEFINE	(	rpcbulkbufs	,
		static	,
		struct m0_rpc_bulk_buf
	)

◆ M0_TL_DESCR_DECLARE()

M0_TL_DESCR_DECLARE	(	bufferpools	,
		M0_EXTERN
	)

◆ M0_TL_DESCR_DEFINE() [1/3]

M0_TL_DESCR_DEFINE	(	stobio	,
		"STOB I/O"	,
		static	,
		struct m0_stob_io_desc	,
		siod_linkage	,
		siod_magic	,
		M0_STOB_IO_DESC_LINK_MAGIC	,
		M0_STOB_IO_DESC_HEAD_MAGIC
	)

◆ M0_TL_DESCR_DEFINE() [2/3]

M0_TL_DESCR_DEFINE	(	netbufs	,
		"Aquired net buffers"	,
		static	,
		struct m0_net_buffer	,
		nb_extern_linkage	,
		nb_magic	,
		M0_NET_BUFFER_LINK_MAGIC	,
		M0_IOS_NET_BUFFER_HEAD_MAGIC
	)

◆ M0_TL_DESCR_DEFINE() [3/3]

M0_TL_DESCR_DEFINE	(	rpcbulkbufs	,
		"rpc bulk buffers"	,
		static	,
		struct m0_rpc_bulk_buf	,
		bb_link	,
		bb_magic	,
		M0_RPC_BULK_BUF_MAGIC	,
		M0_RPC_BULK_MAGIC
	)

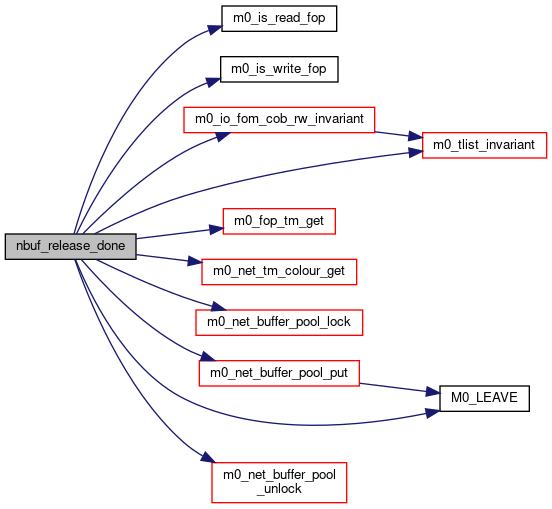

◆ nbuf_release_done()

static int nbuf_release_done	(	struct m0_fom *	fom,
		int	still_required
	)

static

Definition at line 1450 of file io_foms.c.

Here is the call graph for this function:

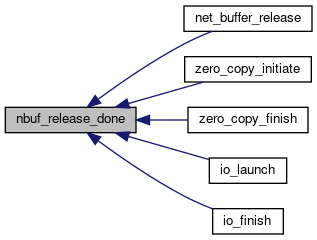

Here is the caller graph for this function:

◆ net_buffer_acquire()

static int net_buffer_acquire ( struct m0_fom * fom )

static

Acquire network buffers. Gets as many network buffer as it can to process io request. It needs at least one network buffer to start io processing. If not able to get single buffer, FOM wait for buffer pool to become non-empty.

If acquired buffers are less than number of fop descriptors then I/O processing will be done by batch.

Parameters

fom	file operation machine instance.

Precondition: fom != NULL; fom->fo_service != NULL; m0_fom_phase(fom) == M0_FOPH_IO_FOM_BUFFER_ACQUIRE

Cache buffer pool pointer with FOM object.

Definition at line 1305 of file io_foms.c.

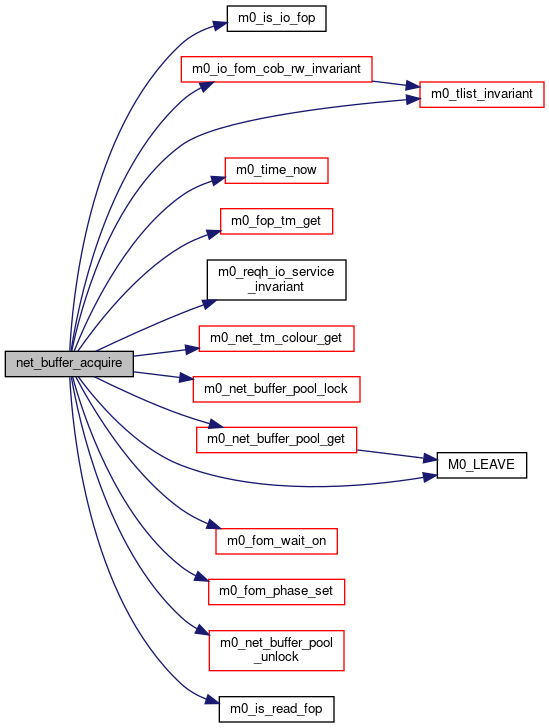

Here is the call graph for this function:

◆ net_buffer_release()

static int net_buffer_release ( struct m0_fom * fom )

static

Release network buffer. Return back network buffer to buffer pool. If acquired buffers are more than the remaining descriptors release extra buffers so that other FOM can use.

Parameters

fom	file operation machine.

Precondition: fom != NULL; fom->fo_service != NULL; m0_fom_phase(fom) == M0_FOPH_IO_BUFFER_RELEASE

Definition at line 1428 of file io_foms.c.

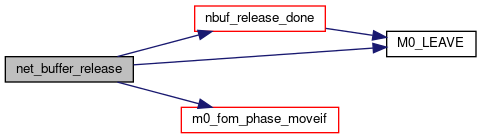

Here is the call graph for this function:

◆ stio_desc_fini()

static void stio_desc_fini ( struct m0_stob_io_desc * stio_desc )

static

Definition at line 1663 of file io_foms.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ stob_be_credit()

static void stob_be_credit ( struct m0_fom * fom )

static

Definition at line 2197 of file io_foms.c.

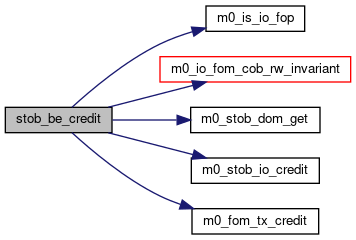

Here is the call graph for this function:

Here is the caller graph for this function:

◆ stob_io_create()

static int stob_io_create ( struct m0_fom * fom )

static

CKSUM_TODO: Check this and use function call

M0_ASSERT(rwfop->crw_di_data_cksum.b_nob == 0);

M0_ASSERT(rwfop->crw_di_data_cksum.b_addr == NULL);

Get the cksum nob expected for given stio

assign checksum buffer to repsective stob
Increment the current cksum count

Definition at line 2035 of file io_foms.c.

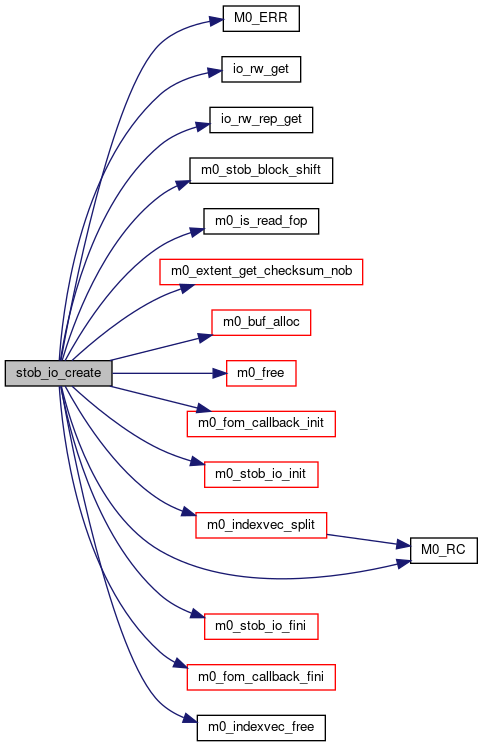

Here is the call graph for this function:

Here is the caller graph for this function:

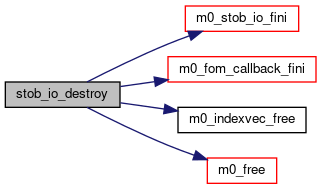

◆ stob_io_destroy()

static void stob_io_destroy ( struct m0_fom * fom )

static

Definition at line 2175 of file io_foms.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ stob_object_find()

static int stob_object_find ( struct m0_fom * fom )

static

Locates a storage object.

Definition at line 1108 of file io_foms.c.

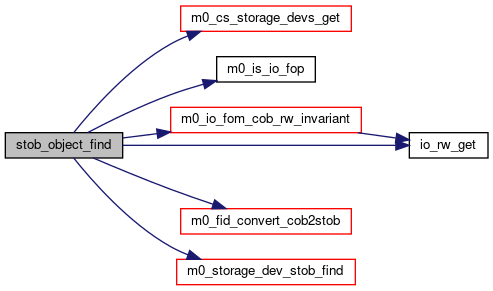

Here is the call graph for this function:

Here is the caller graph for this function:

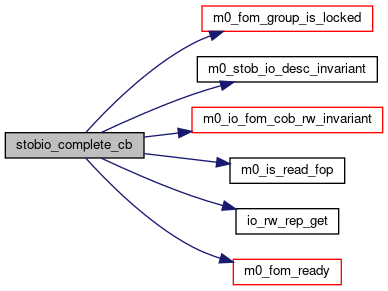

◆ stobio_complete_cb()

static void stobio_complete_cb ( struct m0_fom_callback * cb )

static

Call back function which gets invoked on a single STOB I/O complete. This function check for STOB I/O list and remove stobio entry from list for completed STOB I/O. After completion of all STOB I/O it sends signal to FOM so that it can again put into run queue.

Parameters

cb	fom callback for completed STOB I/O entry

Definition at line 864 of file io_foms.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ zero_copy_finish()

static int zero_copy_finish ( struct m0_fom * fom )

static

Zero-copy Finish Check for zero-copy result.

Parameters

fom	file operation machine.

Precondition: fom != NULL; m0_fom_phase(fom) == M0_FOPH_IO_ZERO_COPY_WAIT

Definition at line 1624 of file io_foms.c.

Here is the call graph for this function:

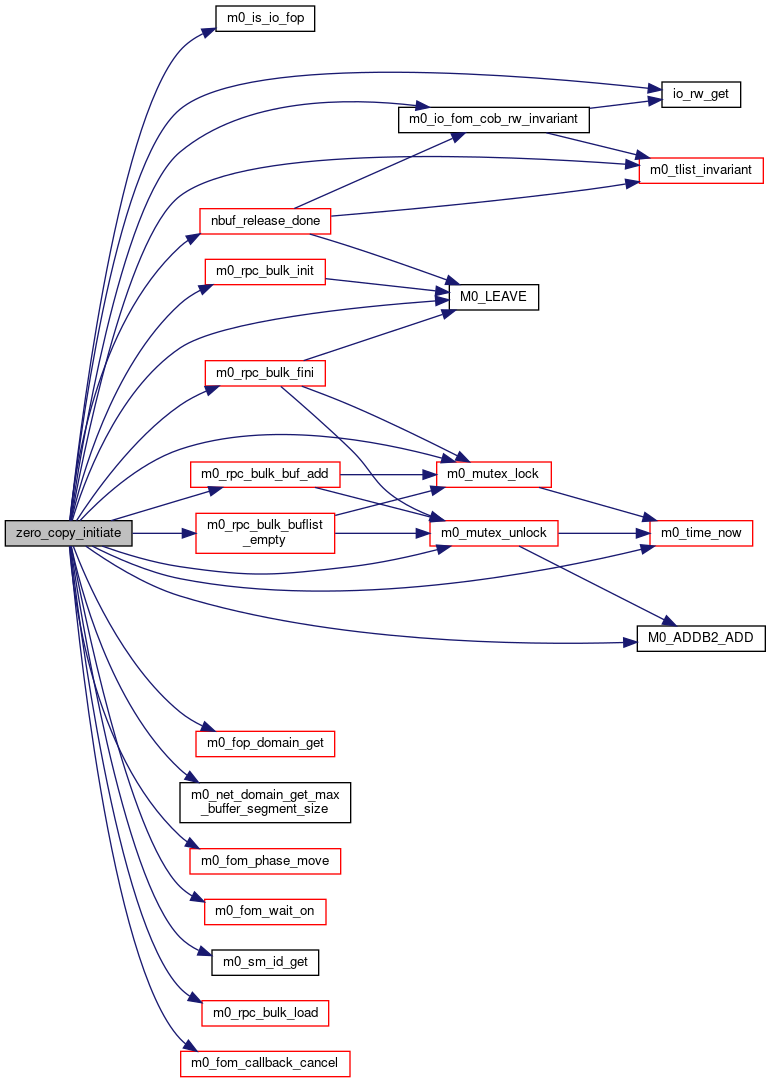

◆ zero_copy_initiate()

static int zero_copy_initiate ( struct m0_fom * fom )

static

Initiate zero-copy Initiates zero-copy for batch of descriptors. And wait for zero-copy to complete for all descriptors. Network layer signaled on m0_rpc_bulk::rb_chan on completion.

Parameters

fom	file operation machine.

Precondition: fom != NULL; m0_fom_phase(fom) == M0_FOPH_IO_ZERO_COPY_INIT

Definition at line 1509 of file io_foms.c.

Here is the call graph for this function:

Variable Documentation

◆ io_conf

struct m0_sm_conf io_conf

Initial value:

= {
        .scf_name      = "io-fom",
        .scf_nr_states = ARRAY_SIZE(io_phases),
        .scf_state     = io_phases,
        .scf_trans_nr  = ARRAY_SIZE(io_phases_trans),
        .scf_trans     = io_phases_trans,
}

Definition at line 822 of file io_foms.c.

◆ io_fom_read_st

struct m0_io_fom_cob_rw_state_transition io_fom_read_st[]

static

I/O Read FOM state transition table.

See also: DLD-bulk-server-lspec-state

Definition at line 641 of file io_foms.c.

◆ io_fom_type_ops

const struct m0_fom_type_ops io_fom_type_ops

Initial value:

= {
        .fto_create = m0_io_fom_cob_rw_create,
}

I/O FOM type operation vector.

Definition at line 633 of file io_foms.c.

◆ io_fom_write_st

const struct m0_io_fom_cob_rw_state_transition io_fom_write_st[]

static

I/O Write FOM state transition table.

See also: DLD-bulk-server-lspec-state

Definition at line 679 of file io_foms.c.

◆ io_phases

struct m0_sm_state_descr io_phases[]

Definition at line 719 of file io_foms.c.

◆ io_phases_trans

struct m0_sm_trans_descr io_phases_trans[]

Definition at line 774 of file io_foms.c.

◆ M0_XCA_ENUM

enum m0_avi_ios_io_labels M0_XCA_ENUM

◆ ops

struct m0_fom_ops ops

Initial value:

= {
        .fo_fini          = &m0_io_fom_cob_rw_fini,
        .fo_tick          = &m0_io_fom_cob_rw_tick,
        .fo_home_locality = &m0_io_fom_cob_rw_locality_get,
        .fo_addb2_descr   = &io_fom_addb2_descr
}

I/O FOM operation vector.

Definition at line 623 of file io_foms.c.

Data Structures

Enumerations

Functions

Variables

Detailed Description

Enumeration Type Documentation

◆ anonymous enum

◆ m0_avi_ios_io_labels

◆ m0_io_fom_cob_rw_phases

Function Documentation

◆ align_bufvec()

◆ cob_bytecount_increment()

◆ fom_cdom()

◆ fom_cob_locate()

◆ indexvec_wire2mem()

◆ io_finish()

◆ io_fom_addb2_descr()

◆ io_fom_cob2file()

◆ io_launch()

◆ io_prepare()

◆ io_rw_get()

◆ io_rw_rep_get()

◆ io_sync()

◆ m0_io_cob_create()

◆ m0_io_cob_stob_create()

◆ m0_io_fom_cob_rw_create()

◆ m0_io_fom_cob_rw_fini()

◆ m0_io_fom_cob_rw_invariant()

◆ m0_io_fom_cob_rw_locality_get()

◆ m0_io_fom_cob_rw_service_name()

◆ m0_io_fom_cob_rw_tick()

◆ m0_io_size()

◆ m0_is_cob_create_fop()

◆ m0_is_cob_delete_fop()

◆ m0_is_io_fop()

◆ m0_is_read_fop()

◆ m0_is_write_fop()

◆ m0_stob_io_desc_invariant()

◆ M0_TL_DECLARE()

◆ M0_TL_DEFINE() [1/3]

◆ M0_TL_DEFINE() [2/3]

◆ M0_TL_DEFINE() [3/3]

◆ M0_TL_DESCR_DECLARE()

◆ M0_TL_DESCR_DEFINE() [1/3]

◆ M0_TL_DESCR_DEFINE() [2/3]

◆ M0_TL_DESCR_DEFINE() [3/3]

◆ nbuf_release_done()

◆ net_buffer_acquire()

◆ net_buffer_release()

◆ stio_desc_fini()

◆ stob_be_credit()

◆ stob_io_create()

◆ stob_io_destroy()

◆ stob_object_find()

◆ stobio_complete_cb()

◆ zero_copy_finish()

◆ zero_copy_initiate()

Variable Documentation

◆ io_conf

◆ io_fom_read_st

◆ io_fom_type_ops

◆ io_fom_write_st

◆ io_phases

◆ io_phases_trans

◆ M0_XCA_ENUM

◆ ops
