Copy Machine

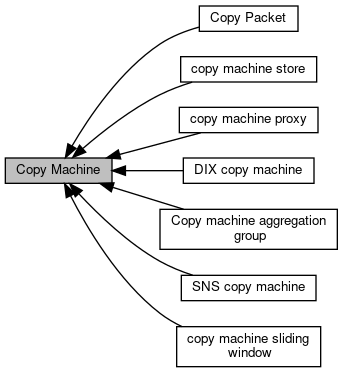

Collaboration diagram for Copy Machine:

Modules
	Copy Packet
	Copy machine aggregation group
	DIX copy machine
	SNS copy machine
	copy machine proxy
	copy machine sliding window
	copy machine store

Data Structures
struct	m0_cm_type
struct	m0_cm_ast_run
struct	m0_cm
struct	m0_cm_ops
struct	m0_fom_trigger_ops
struct	m0_trigger_fom
struct	failure_data
struct	trigger_fop
struct	trigger_rep_fop
struct	m0_status_rep_fop

Macros
#define	M0_CM_TYPE_DECLARE(cmtype, id, ops, name, typecode)
#define	M0_TRACE_SUBSYSTEM   M0_TRACE_SUBSYS_CM

Enumerations
enum	m0_cm_state {   M0_CMS_INIT, M0_CMS_IDLE, M0_CMS_PREPARE, M0_CMS_READY,   M0_CMS_ACTIVE, M0_CMS_FAIL, M0_CMS_STOP, M0_CMS_FINI,   M0_CMS_NR }
enum	{ CM_RPC_TIMEOUT = 20, CM_MAX_NR_RPC_IN_FLIGHT = 100 }
enum	cm_cp_pump_fom_phase {   CPP_ALLOC = M0_FOM_PHASE_INIT, CPP_FINI = M0_FOM_PHASE_FINISH, CPP_DATA_NEXT, CPP_COMPLETE,   CPP_STOP, CPP_FAIL, CPP_NR }
enum	{ CM_PUMP_MAGIX = 0x330FF1CE0FF1CE77 }
enum	m0_trigger_phases { M0_TPH_PREPARE = M0_FOPH_NR + 1, M0_TPH_READY, M0_TPH_START, M0_TPH_FINI = M0_FOM_PHASE_FINISH }

Functions
	M0_TL_DESCR_DEFINE (cmtypes, "copy machine types", static, struct m0_cm_type, ct_linkage, ct_magix, CM_TYPE_LINK_MAGIX, CM_TYPE_HEAD_MAGIX)
	M0_TL_DEFINE (cmtypes, static, struct m0_cm_type)
	M0_BOB_DEFINE (static, &cmtypes_bob, m0_cm_type)
M0_INTERNAL struct m0_cm *	m0_cmsvc2cm (struct m0_reqh_service *cmsvc)
M0_INTERNAL int	m0_ha_cm_err_send (struct m0_cm *cm, int rc)
M0_INTERNAL void	m0_cm_fail (struct m0_cm *cm, int rc)
M0_INTERNAL void	m0_cm_lock (struct m0_cm *cm)
M0_INTERNAL void	m0_cm_unlock (struct m0_cm *cm)
M0_INTERNAL int	m0_cm_trylock (struct m0_cm *cm)
M0_INTERNAL bool	m0_cm_is_locked (const struct m0_cm *cm)
M0_INTERNAL enum m0_cm_state	m0_cm_state_get (const struct m0_cm *cm)
M0_INTERNAL void	m0_cm_state_set (struct m0_cm *cm, enum m0_cm_state state)
static int	cm_rc (struct m0_cm *cm)
M0_INTERNAL bool	m0_cm_invariant (const struct m0_cm *cm)

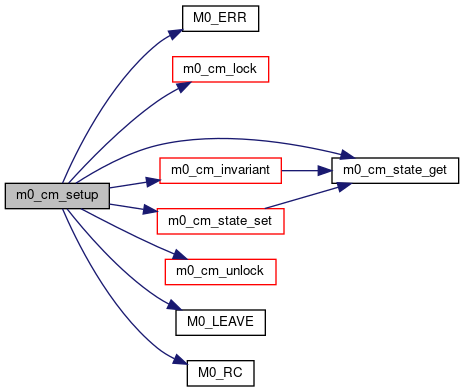

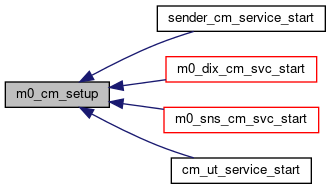

M0_INTERNAL int	m0_cm_setup (struct m0_cm *cm)
static int	cm_replicas_connect (struct m0_cm *cm, struct m0_rpc_machine *rmach, struct m0_reqh *reqh)
static void	cm_replicas_destroy (struct m0_cm *cm)
static int	cm_pre_start_cleanup (struct m0_cm *cm)
M0_INTERNAL struct m0_rpc_machine *	m0_cm_rpc_machine_find (struct m0_reqh *reqh)

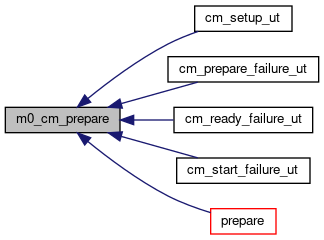

M0_INTERNAL int	m0_cm_prepare (struct m0_cm *cm)
M0_INTERNAL int	m0_cm_ready (struct m0_cm *cm)
M0_INTERNAL bool	m0_cm_is_ready (struct m0_cm *cm)
M0_INTERNAL bool	m0_cm_is_active (struct m0_cm *cm)
M0_INTERNAL int	m0_cm_start (struct m0_cm *cm)
M0_INTERNAL int	m0_cm_proxies_fini (struct m0_cm *cm)

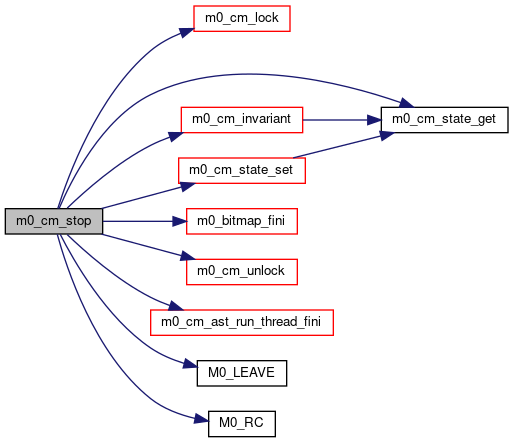

M0_INTERNAL int	m0_cm_stop (struct m0_cm *cm)

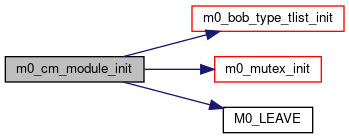

M0_INTERNAL int	m0_cm_module_init (void)
M0_INTERNAL void	m0_cm_module_fini (void)
static uint64_t	cm_id_generate (void)

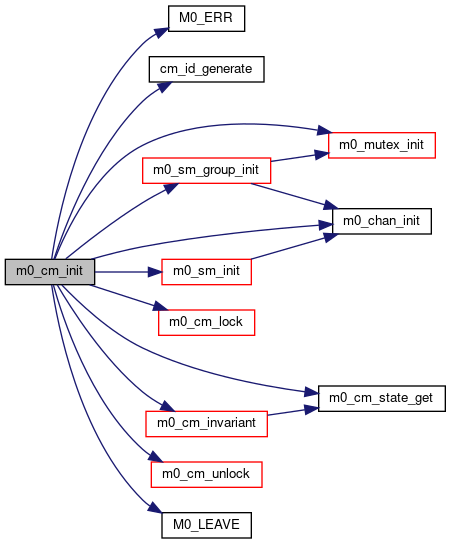

M0_INTERNAL int	m0_cm_init (struct m0_cm *cm, struct m0_cm_type *cm_type, const struct m0_cm_ops *cm_ops)

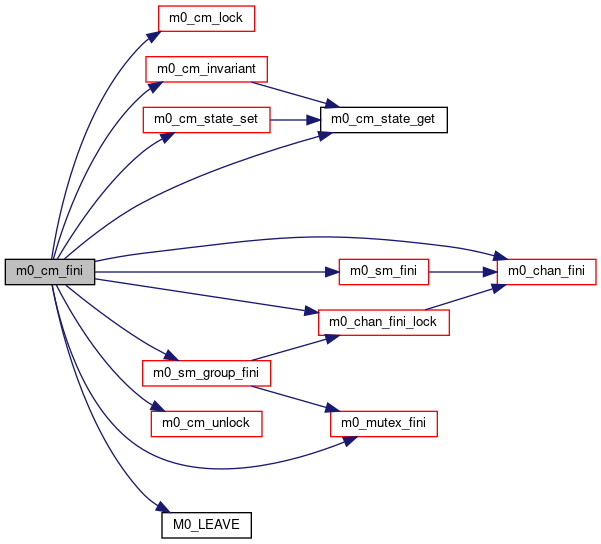

M0_INTERNAL void	m0_cm_fini (struct m0_cm *cm)
M0_INTERNAL int	m0_cm_type_register (struct m0_cm_type *cmtype)
M0_INTERNAL void	m0_cm_type_deregister (struct m0_cm_type *cmtype)
M0_INTERNAL int	m0_cm_data_next (struct m0_cm *cm, struct m0_cm_cp *cp)
M0_INTERNAL bool	m0_cm_has_more_data (const struct m0_cm *cm)
M0_INTERNAL struct m0_net_buffer *	m0_cm_buffer_get (struct m0_net_buffer_pool *bp, uint64_t colour)
M0_INTERNAL void	m0_cm_buffer_put (struct m0_net_buffer_pool *bp, struct m0_net_buffer *buf, uint64_t colour)

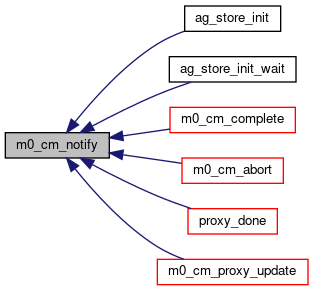

M0_INTERNAL void	m0_cm_notify (struct m0_cm *cm)
M0_INTERNAL void	m0_cm_wait (struct m0_cm *cm, struct m0_fom *fom)
M0_INTERNAL void	m0_cm_wait_cancel (struct m0_cm *cm, struct m0_fom *fom)
M0_INTERNAL int	m0_cm_complete (struct m0_cm *cm)
M0_INTERNAL void	m0_cm_complete_notify (struct m0_cm *cm)
M0_INTERNAL void	m0_cm_proxies_init_wait (struct m0_cm *cm, struct m0_fom *fom)

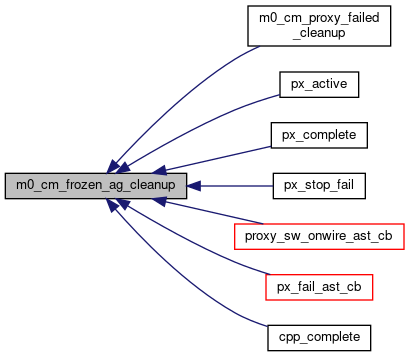

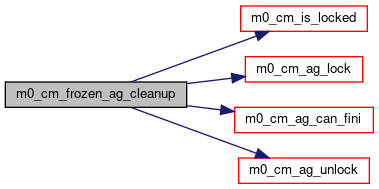

M0_INTERNAL void	m0_cm_frozen_ag_cleanup (struct m0_cm *cm, struct m0_cm_proxy *proxy)
M0_INTERNAL void	m0_cm_proxy_failed_cleanup (struct m0_cm *cm)

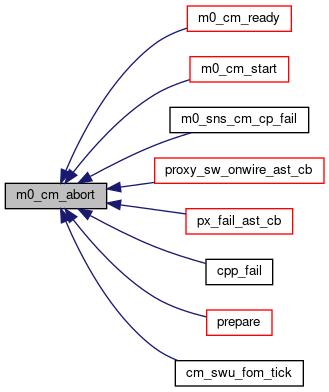

M0_INTERNAL void	m0_cm_abort (struct m0_cm *cm, int rc)
M0_INTERNAL bool	m0_cm_is_dirty (struct m0_cm *cm)
M0_INTERNAL bool	m0_cm_proxies_updated (struct m0_cm *cm)
static void	cm_ast_run_thread (struct m0_cm *cm)
M0_INTERNAL int	m0_cm_ast_run_thread_init (struct m0_cm *cm)
M0_INTERNAL void	m0_cm_ast_run_thread_fini (struct m0_cm *cm)
M0_INTERNAL int	m0_cm_configure (struct m0_cm *cm, struct m0_fop *fop)
M0_INTERNAL void	m0_cm_continue (struct m0_cm *cm)
	M0_BOB_DEFINE (static, &pump_bob, m0_cm_cp_pump)
static struct m0_cm *	pump2cm (const struct m0_cm_cp_pump *cp_pump)
static bool	cm_cp_pump_invariant (const struct m0_cm_cp_pump *cp_pump)
static void	pump_move (struct m0_cm_cp_pump *cp_fom, int rc, int phase)
static int	cpp_alloc (struct m0_cm_cp_pump *cp_pump)
static int	cpp_data_next (struct m0_cm_cp_pump *cp_pump)
static int	cpp_complete (struct m0_cm_cp_pump *cp_pump)
static int	cpp_stop (struct m0_cm_cp_pump *cp_pump)
static int	cpp_fail (struct m0_cm_cp_pump *cp_pump)
static uint64_t	cm_cp_pump_fom_locality (const struct m0_fom *fom)
static int	cm_cp_pump_fom_tick (struct m0_fom *fom)
static void	cm_cp_pump_fom_fini (struct m0_fom *fom)
bool	m0_cm_cp_pump_is_complete (const struct m0_cm_cp_pump *cp_pump)
M0_INTERNAL void	m0_cm_cp_pump_init (struct m0_cm_type *cmtype)
M0_INTERNAL void	m0_cm_cp_pump_prepare (struct m0_cm *cm)
M0_INTERNAL void	m0_cm_cp_pump_destroy (struct m0_cm *cm)
static void	complete_wakeup (struct m0_sm_group *grp, struct m0_sm_ast *ast)
static bool	pump_cb (struct m0_clink *link)

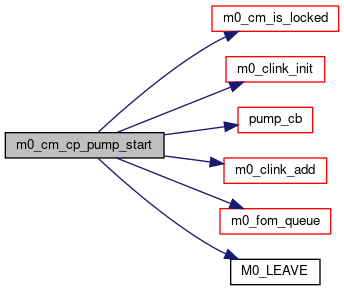

M0_INTERNAL void	m0_cm_cp_pump_start (struct m0_cm *cm)

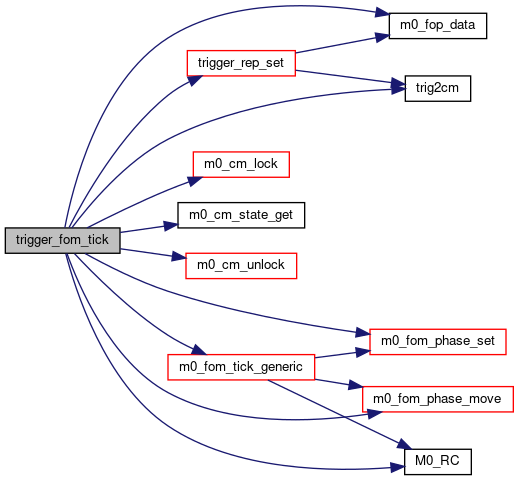

static int	trigger_fom_tick (struct m0_fom *fom)
static void	trigger_fom_fini (struct m0_fom *fom)
static size_t	trigger_fom_home_locality (const struct m0_fom *fom)
static int	prepare (struct m0_fom *fom)
static int	ready (struct m0_fom *fom)
static int	start (struct m0_fom *fom)
M0_INTERNAL int	m0_trigger_fom_create (struct m0_trigger_fom *tfom, struct m0_fop *fop, struct m0_reqh *reqh)

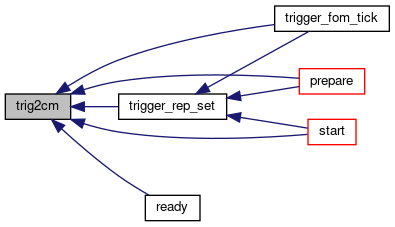

static struct m0_cm *	trig2cm (const struct m0_fom *fom)
static struct m0_trigger_fom *	trig2tfom (const struct m0_fom *fom)
static void	trigger_rep_set (struct m0_fom *fom)
M0_INTERNAL void	m0_cm_trigger_fop_fini (struct m0_fop_type *ft)
M0_INTERNAL void	m0_cm_trigger_fop_init (struct m0_fop_type *ft, enum M0_RPC_OPCODES op, const char *name, const struct m0_xcode_type *xt, uint64_t rpc_flags, struct m0_cm_type *cmt, const struct m0_fom_type_ops *ops)
struct failure_data	M0_XCA_DOMAIN (rpc)

Variables
static struct m0_tl	cmtypes
static struct m0_mutex	cmtypes_mutex
static struct m0_bob_type	cmtypes_bob
static struct m0_sm_state_descr	cm_state_descr [M0_CMS_NR]
static const struct m0_sm_conf	cm_sm_conf
static const struct m0_bob_type	pump_bob
static const struct m0_fom_type_ops	cm_cp_pump_fom_type_ops
static struct m0_sm_state_descr	cm_cp_pump_sd [CPP_NR]
struct m0_sm_trans_descr	cm_cp_pump_td []
struct m0_sm_conf	cm_cp_pump_conf
static int(*	pump_action [])(struct m0_cm_cp_pump *cp_pump)
static const struct m0_fom_ops	cm_cp_pump_fom_ops
static const struct m0_fom_ops	trigger_fom_ops
struct m0_sm_state_descr	m0_trigger_phases []
const struct m0_sm_conf	m0_trigger_conf
static int(*	trig_action [])(struct m0_fom *)
struct m0_fom_trigger_ops	M0_XCA_DOMAIN

Detailed Description

Copy machine is a replicated state machine to restructure data in various ways (e.g. copying, moving, re-striping, reconstructing, encrypting, compressing, reintegrating, etc.).

Macro Definition Documentation

M0_CM_TYPE_DECLARE

#define M0_CM_TYPE_DECLARE	(		cmtype,
			id,
			ops,
			name,
			typecode
	)

Value:

M0_INTERNAL struct m0_cm_type cmtype ## _cmt = {                                \
        .ct_fom_id = (id),                                      \
        .ct_stype = {                                           \
                .rst_name    = (name),                          \
                .rst_ops     = (ops),                           \
                .rst_level   = M0_RS_LEVEL_NORMAL,              \
                .rst_typecode = (typecode)                      \
        }                                                       \
}

Definition at line 467 of file cm.h.

M0_TRACE_SUBSYSTEM

#define M0_TRACE_SUBSYSTEM   M0_TRACE_SUBSYS_CM

Definition at line 30 of file trigger_fom.c.

Enumeration Type Documentation

anonymous enum

anonymous enum

Enumerator
CM_RPC_TIMEOUT
CM_MAX_NR_RPC_IN_FLIGHT

Definition at line 137 of file cm.h.

anonymous enum

anonymous enum

Enumerator
CM_PUMP_MAGIX

Definition at line 81 of file pump.c.

cm_cp_pump_fom_phase

enum cm_cp_pump_fom_phase

Enumerator
CPP_ALLOC	New copy packets are allocated in this phase. m0_cm_cp_pump::p_fom is in CPP_ALLOC phase when it is initialised by m0_cm_cp_pump_start() and when m0_cm_sw_fill() is invoked from a copy packet FOM, during latter's finalisation, which sets the m0_cm_cp_pump::p_fom phase to CPP_ALLOC and calls m0_fom_wakeup().
CPP_FINI
CPP_DATA_NEXT	Copy packets allocated in CPP_ALLOC phase are configured in this phase.
CPP_COMPLETE	m0_cm_cp_pump::p_fom is transitioned to CPP_COMPLETE phase, once m0_cm_data_next() returns -ENODATA (i.e. there's no more data to process for the iterator).
CPP_STOP
CPP_FAIL	Copy machine is notified about the failure, and m0_cm_cp_pump::p_fom remains in CPP_FAIL state. Once copy machine handles the failure pump FOM is resumed, else stopped if the copy machine operation is to be terminated.
CPP_NR

Definition at line 49 of file pump.c.

m0_cm_state

enum m0_cm_state

Copy machine states.

See also

The Copy Machine State diagram

Enumerator
M0_CMS_INIT
M0_CMS_IDLE
M0_CMS_PREPARE
M0_CMS_READY
M0_CMS_ACTIVE
M0_CMS_FAIL
M0_CMS_STOP
M0_CMS_FINI
M0_CMS_NR

Definition at line 125 of file cm.h.

m0_trigger_phases

enum struct m0_sm_state_descr m0_trigger_phases

Enumerator
M0_TPH_PREPARE
M0_TPH_READY
M0_TPH_START
M0_TPH_FINI

Definition at line 52 of file trigger_fom.h.

Function Documentation

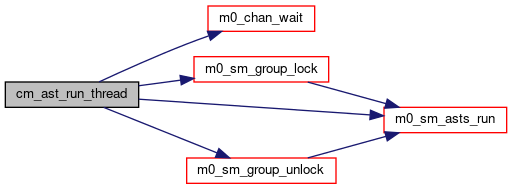

cm_ast_run_thread()

static void cm_ast_run_thread ( struct m0_cm *  cm )

static

Definition at line 1205 of file cm.c.

Here is the call graph for this function:

Here is the caller graph for this function:

cm_cp_pump_fom_fini()

static void cm_cp_pump_fom_fini ( struct m0_fom *  fom )

static

Definition at line 405 of file pump.c.

Here is the call graph for this function:

Here is the caller graph for this function:

cm_cp_pump_fom_locality()

static uint64_t cm_cp_pump_fom_locality ( const struct m0_fom *  fom )

static

Definition at line 386 of file pump.c.

cm_cp_pump_fom_tick()

static int cm_cp_pump_fom_tick ( struct m0_fom *  fom )

static

Definition at line 391 of file pump.c.

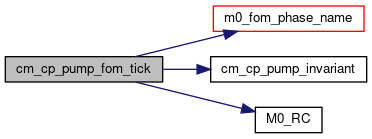

Here is the call graph for this function:

cm_cp_pump_invariant()

static bool cm_cp_pump_invariant ( const struct m0_cm_cp_pump *  cp_pump )

static

Definition at line 103 of file pump.c.

Here is the caller graph for this function:

cm_id_generate()

static uint64_t cm_id_generate ( void  )

static

Temporary implementation to generate unique cm ids.

Todo:

Rewrite this when mechanism to generate unique ids is in place.

Definition at line 919 of file cm.c.

Here is the caller graph for this function:

cm_pre_start_cleanup()

static int cm_pre_start_cleanup ( struct m0_cm *  cm )

static

Definition at line 699 of file cm.c.

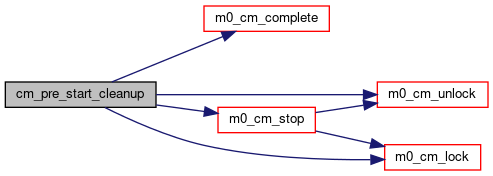

Here is the call graph for this function:

Here is the caller graph for this function:

cm_rc()

static int cm_rc ( struct m0_cm *  cm )

static

Definition at line 580 of file cm.c.

Here is the caller graph for this function:

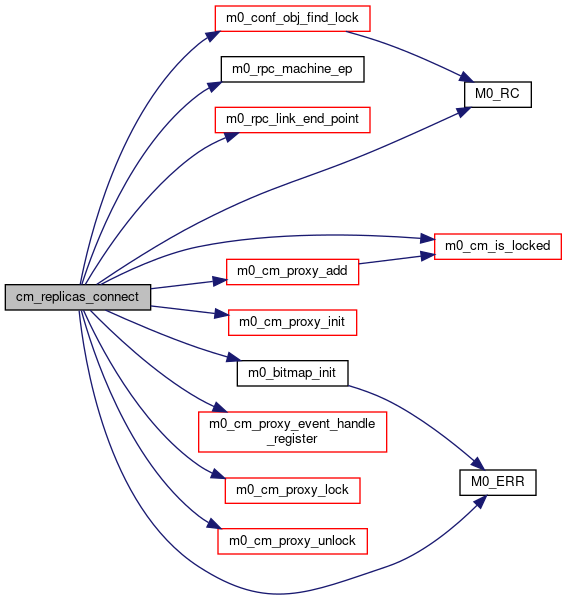

cm_replicas_connect()

static int cm_replicas_connect ( struct m0_cm *  cm, struct m0_rpc_machine *  rmach, struct m0_reqh *  reqh  )

static

Definition at line 627 of file cm.c.

Here is the call graph for this function:

Here is the caller graph for this function:

cm_replicas_destroy()

static void cm_replicas_destroy ( struct m0_cm *  cm )

static

Definition at line 686 of file cm.c.

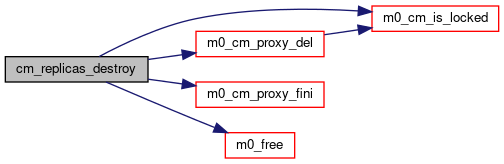

Here is the call graph for this function:

Here is the caller graph for this function:

complete_wakeup()

static void complete_wakeup ( struct m0_sm_group *  grp, struct m0_sm_ast *  ast  )

static

Definition at line 451 of file pump.c.

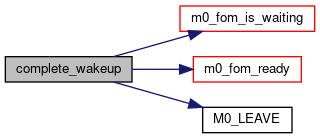

Here is the call graph for this function:

Here is the caller graph for this function:

cpp_alloc()

static int cpp_alloc ( struct m0_cm_cp_pump *  cp_pump )

static

Definition at line 116 of file pump.c.

Here is the call graph for this function:

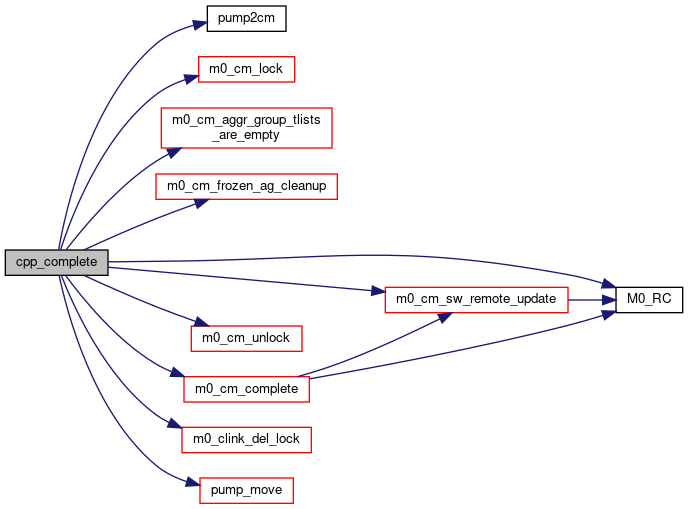

cpp_complete()

static int cpp_complete ( struct m0_cm_cp_pump *  cp_pump )

static

Definition at line 190 of file pump.c.

Here is the call graph for this function:

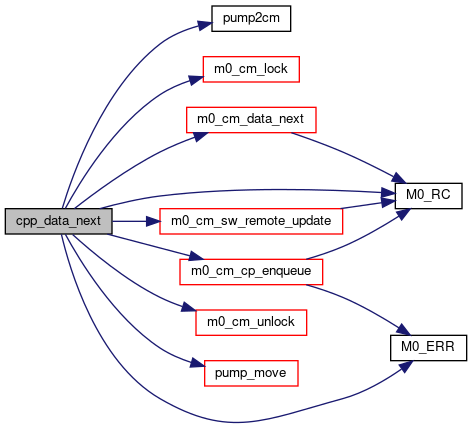

cpp_data_next()

static int cpp_data_next ( struct m0_cm_cp_pump *  cp_pump )

static

Definition at line 135 of file pump.c.

Here is the call graph for this function:

cpp_fail()

static int cpp_fail ( struct m0_cm_cp_pump *  cp_pump )

static

Definition at line 287 of file pump.c.

Here is the call graph for this function:

cpp_stop()

static int cpp_stop ( struct m0_cm_cp_pump *  cp_pump )

static

Definition at line 225 of file pump.c.

Here is the call graph for this function:

M0_BOB_DEFINE() [1/2]

M0_BOB_DEFINE	(	static	,
		&	pump_bob,
		m0_cm_cp_pump
	)

M0_BOB_DEFINE() [2/2]

M0_BOB_DEFINE	(	static	,
		&	cmtypes_bob,
		m0_cm_type
	)

m0_cm_abort()

M0_INTERNAL void m0_cm_abort	(	struct m0_cm *	cm,
		int	rc
	)

Definition at line 1181 of file cm.c.

Here is the call graph for this function:

Here is the caller graph for this function:

m0_cm_ast_run_thread_fini()

M0_INTERNAL void m0_cm_ast_run_thread_fini

(

struct m0_cm *

cm

)

Definition at line 1223 of file cm.c.

Here is the call graph for this function:

Here is the caller graph for this function:

m0_cm_ast_run_thread_init()

M0_INTERNAL int m0_cm_ast_run_thread_init

(

struct m0_cm *

cm

)

Definition at line 1215 of file cm.c.

Here is the call graph for this function:

Here is the caller graph for this function:

m0_cm_buffer_get()

M0_INTERNAL struct m0_net_buffer * m0_cm_buffer_get	(	struct m0_net_buffer_pool *	bp,
		uint64_t	colour
	)

Definition at line 1057 of file cm.c.

Here is the call graph for this function:

Here is the caller graph for this function:

m0_cm_buffer_put()

M0_INTERNAL void m0_cm_buffer_put	(	struct m0_net_buffer_pool *	bp,
		struct m0_net_buffer *	buf,
		uint64_t	colour
	)

Definition at line 1074 of file cm.c.

Here is the call graph for this function:

Here is the caller graph for this function:

m0_cm_complete()

M0_INTERNAL int m0_cm_complete

(

struct m0_cm *

cm

)

Definition at line 1100 of file cm.c.

Here is the call graph for this function:

Here is the caller graph for this function:

m0_cm_complete_notify()

M0_INTERNAL void m0_cm_complete_notify

(

struct m0_cm *

cm

)

Definition at line 1133 of file cm.c.

Here is the call graph for this function:

Here is the caller graph for this function:

m0_cm_configure()

M0_INTERNAL int m0_cm_configure	(	struct m0_cm *	cm,
		struct m0_fop *	fop
	)

Configures a copy machine replica.

Todo:

Pass actual configuration fop data structure once configuration interfaces and datastructures are available.

Precondition

m0_cm_state_get(cm) == M0_CMS_IDLE

m0_cm_continue()

M0_INTERNAL void m0_cm_continue

(

struct m0_cm *

cm

)

Creates copy packets and adds aggregation groups to m0_cm::cm_aggr_grps, if required.

m0_cm_cp_pump_destroy()

M0_INTERNAL void m0_cm_cp_pump_destroy

(

struct m0_cm *

cm

)

Definition at line 446 of file pump.c.

Here is the call graph for this function:

m0_cm_cp_pump_init()

M0_INTERNAL void m0_cm_cp_pump_init

(

struct m0_cm_type *

cmtype

)

Definition at line 426 of file pump.c.

Here is the call graph for this function:

Here is the caller graph for this function:

m0_cm_cp_pump_is_complete()

bool m0_cm_cp_pump_is_complete

(

const struct m0_cm_cp_pump *

cp_pump

)

Definition at line 420 of file pump.c.

Here is the caller graph for this function:

m0_cm_cp_pump_prepare()

M0_INTERNAL void m0_cm_cp_pump_prepare

(

struct m0_cm *

cm

)

Definition at line 433 of file pump.c.

Here is the call graph for this function:

Here is the caller graph for this function:

m0_cm_cp_pump_start()

M0_INTERNAL void m0_cm_cp_pump_start

(

struct m0_cm *

cm

)

Initialises pump FOM and submits it to reqh for processing. This is invoked from m0_cm_start()

Definition at line 479 of file pump.c.

Here is the call graph for this function:

Here is the caller graph for this function:

m0_cm_data_next()

M0_INTERNAL int m0_cm_data_next	(	struct m0_cm *	cm,
		struct m0_cm_cp *	cp
	)

Iterates over data to be re-structured.

Precondition

m0_cm_invariant(cm)

m0_cm_is_locked(cm)

cp != NULL

Postcondition

ergo(rc == 0, cp->c_data != NULL)

Definition at line 1034 of file cm.c.

Here is the call graph for this function:

Here is the caller graph for this function:

m0_cm_fail()

M0_INTERNAL void m0_cm_fail	(	struct m0_cm *	cm,
		int	rc
	)

Handles various type of copy machine failures based on the failure code and errno.

Todo:

Rewrite this function when new ADDB infrastucture is in place.

Parameters

cm	Failed copy machine.
failure	Copy machine failure code.
rc	errno to which sm rc will be set to.

Definition at line 527 of file cm.c.

Here is the call graph for this function:

Here is the caller graph for this function:

m0_cm_fini()

M0_INTERNAL void m0_cm_fini

(

struct m0_cm *

cm

)

Finalises a copy machine. This is invoked from copy machine specific service fini routine.

Precondition

cm != NULL && m0_cm_state_get(cm) == M0_CMS_IDLE

Postcondition

m0_cm_state_get(cm) == M0_CMS_FINI

Definition at line 964 of file cm.c.

Here is the call graph for this function:

Here is the caller graph for this function:

m0_cm_frozen_ag_cleanup()

M0_INTERNAL void m0_cm_frozen_ag_cleanup	(	struct m0_cm *	cm,
		struct m0_cm_proxy *	proxy
	)

Finds and destroys aggregation groups that are unable to progress further. SNS operation (repair/rebalance) specific implementation of struct m0_cm_aggr_group_ops::cago_is_frozen_on() helps check relevant parameters and identify if an aggregation group is frozen or not.

Parameters

cm	Copy machine with frozen aggregation groups.
proxy	Remote copy machine on which an aggregation group could be frozen on (in case expected incoming copy packets will not be arriving). Proxy can be NULL in case cleanup is invoked for local copy machine, this may be the case of single node setup, with no remote copy machines.

Definition at line 1148 of file cm.c.

Here is the call graph for this function:

Here is the caller graph for this function:

m0_cm_has_more_data()

M0_INTERNAL bool m0_cm_has_more_data

(

const struct m0_cm *

cm

)

Checks if copy machine pump FOM will be creating more copy packets or if its done. Once pump FOM is done creating copy packets, it sets m0_cm_cp_pump::p_fom.fo_sm_phase.sm_rc = -ENODATA, the same is checked by this function.

Definition at line 1052 of file cm.c.

Here is the call graph for this function:

m0_cm_init()

M0_INTERNAL int m0_cm_init	(	struct m0_cm *	cm,
		struct m0_cm_type *	cm_type,
		const struct m0_cm_ops *	cm_ops
	)

Initialises a copy machine. This is invoked from copy machine specific service init routine. Transitions copy machine into M0_CMS_INIT state if the initialisation completes without any errors.

Precondition

cm != NULL

Postcondition

ergo(result == 0, m0_cm_state_get(cm) == M0_CMS_INIT)

Definition at line 925 of file cm.c.

Here is the call graph for this function:

Here is the caller graph for this function:

m0_cm_invariant()

M0_INTERNAL bool m0_cm_invariant

(

const struct m0_cm *

cm

)

Checks consistency of copy machine.

Definition at line 585 of file cm.c.

Here is the call graph for this function:

Here is the caller graph for this function:

m0_cm_is_active()

M0_INTERNAL bool m0_cm_is_active

(

struct m0_cm *

cm

)

Definition at line 799 of file cm.c.

Here is the call graph for this function:

m0_cm_is_dirty()

M0_INTERNAL bool m0_cm_is_dirty

(

struct m0_cm *

cm

)

Definition at line 1193 of file cm.c.

Here is the call graph for this function:

Here is the caller graph for this function:

m0_cm_is_locked()

M0_INTERNAL bool m0_cm_is_locked

(

const struct m0_cm *

cm

)

Returns true, iff the copy machine lock is held by the current thread. The lock should be released before returning from a fom state transition function. This function is used only in assertions.

Definition at line 560 of file cm.c.

Here is the call graph for this function:

m0_cm_is_ready()

M0_INTERNAL bool m0_cm_is_ready

(

struct m0_cm *

cm

)

Definition at line 793 of file cm.c.

Here is the call graph for this function:

m0_cm_lock()

M0_INTERNAL void m0_cm_lock

(

struct m0_cm *

cm

)

Locks copy machine replica. We use a state machine group per copy machine replica.

Definition at line 545 of file cm.c.

Here is the call graph for this function:

Here is the caller graph for this function:

m0_cm_module_fini()

M0_INTERNAL void m0_cm_module_fini

(

void

)

Definition at line 907 of file cm.c.

Here is the call graph for this function:

m0_cm_module_init()

M0_INTERNAL int m0_cm_module_init

(

void

)

Definition at line 895 of file cm.c.

Here is the call graph for this function:

m0_cm_notify()

M0_INTERNAL void m0_cm_notify

(

struct m0_cm *

cm

)

Definition at line 1081 of file cm.c.

Here is the call graph for this function:

Here is the caller graph for this function:

m0_cm_prepare()

M0_INTERNAL int m0_cm_prepare

(

struct m0_cm *

cm

)

Definition at line 717 of file cm.c.

Here is the call graph for this function:

Here is the caller graph for this function:

m0_cm_proxies_fini()

M0_INTERNAL int m0_cm_proxies_fini

(

struct m0_cm *

cm

)

Finalising a proxy can be a blocking operation as we wait until the correspoding remote replica has completed its operations.

Return values

0	On success.
-EAGAIN	When proxy is not ready to be finalised.

Definition at line 840 of file cm.c.

Here is the call graph for this function:

Here is the caller graph for this function:

m0_cm_proxies_init_wait()

M0_INTERNAL void m0_cm_proxies_init_wait	(	struct m0_cm *	cm,
		struct m0_fom *	fom
	)

Definition at line 1142 of file cm.c.

Here is the call graph for this function:

Here is the caller graph for this function:

m0_cm_proxies_updated()

M0_INTERNAL bool m0_cm_proxies_updated

(

struct m0_cm *

cm

)

Definition at line 1198 of file cm.c.

Here is the call graph for this function:

m0_cm_proxy_failed_cleanup()

M0_INTERNAL void m0_cm_proxy_failed_cleanup

(

struct m0_cm *

cm

)

Definition at line 1172 of file cm.c.

Here is the call graph for this function:

m0_cm_ready()

M0_INTERNAL int m0_cm_ready

(

struct m0_cm *

cm

)

Definition at line 759 of file cm.c.

Here is the call graph for this function:

Here is the caller graph for this function:

m0_cm_rpc_machine_find()

M0_INTERNAL struct m0_rpc_machine * m0_cm_rpc_machine_find

(

struct m0_reqh *

reqh

)

Definition at line 712 of file cm.c.

Here is the caller graph for this function:

m0_cm_setup()

M0_INTERNAL int m0_cm_setup

(

struct m0_cm *

cm

)

Perfoms copy machine setup tasks by calling copy machine specific setup routine. This is invoked from copy machine specific service start routine. On successful completion of the setup, a copy machine transitions to "IDLE" state where it waits for a data restructuring request.

Precondition

cm != NULL && m0_cm_state_get(cm) == M0_CMS_INIT

Postcondition

m0_cm_state_get(cm) == M0_CMS_IDLE

Definition at line 595 of file cm.c.

Here is the call graph for this function:

Here is the caller graph for this function:

m0_cm_start()

M0_INTERNAL int m0_cm_start

(

struct m0_cm *

cm

)

Starts the copy machine data restructuring process on receiving the "POST" fop. Internally invokes copy machine specific start routine. Starts pump FOM.

Precondition

cm != NULL && m0_cm_state_get(cm) == M0_CMS_IDLE

Postcondition

m0_cm_state_get(cm) == M0_CMS_ACTIVE

Definition at line 805 of file cm.c.

Here is the call graph for this function:

Here is the caller graph for this function:

m0_cm_state_get()

M0_INTERNAL enum m0_cm_state m0_cm_state_get

(

const struct m0_cm *

cm

)

Definition at line 565 of file cm.c.

Here is the caller graph for this function:

m0_cm_state_set()

M0_INTERNAL void m0_cm_state_set	(	struct m0_cm *	cm,
		enum m0_cm_state	state
	)

Copy machine state mutators & accessors

Definition at line 570 of file cm.c.

Here is the call graph for this function:

Here is the caller graph for this function:

m0_cm_stop()

M0_INTERNAL int m0_cm_stop

(

struct m0_cm *

cm

)

Stops copy machine operation. Once operation completes successfully, copy machine performs required tasks, (e.g. updating layouts, cleanup, etc.) by invoking m0_cm_stop(), this transitions copy machine back to M0_CMS_IDLE state. Copy machine invokes m0_cm_stop() also in case of operational failure to broadcast STOP FOPs to its other replicas in the pool, indicating failure. This is handled specific to the copy machine type.

Precondition

cm!= NULL && M0_IN(m0_cm_state_get(cm), (M0_CMS_ACTIVE))

Postcondition

M0_IN(m0_cm_state_get(cm), (M0_CMS_IDLE, M0_CMS_FAIL))

Definition at line 866 of file cm.c.

Here is the call graph for this function:

Here is the caller graph for this function:

m0_cm_trigger_fop_fini()

M0_INTERNAL void m0_cm_trigger_fop_fini

(

struct m0_fop_type *

ft

)

Finalises copy machine trigger FOP type.

Definition at line 353 of file trigger_fom.c.

Here is the call graph for this function:

Here is the caller graph for this function:

m0_cm_trigger_fop_init()

M0_INTERNAL void m0_cm_trigger_fop_init	(	struct m0_fop_type *	ft,
		enum M0_RPC_OPCODES	op,
		const char *	name,
		const struct m0_xcode_type *	xt,
		uint64_t	rpc_flags,
		struct m0_cm_type *	cmt,
		const struct m0_fom_type_ops *	ops
	)

Initialises copy machine trigger FOP type.

Definition at line 358 of file trigger_fom.c.

Here is the call graph for this function:

Here is the caller graph for this function:

m0_cm_trylock()

M0_INTERNAL int m0_cm_trylock

(

struct m0_cm *

cm

)

Definition at line 555 of file cm.c.

Here is the call graph for this function:

m0_cm_type_deregister()

M0_INTERNAL void m0_cm_type_deregister

(

struct m0_cm_type *

cmtype

)

Definition at line 1019 of file cm.c.

Here is the call graph for this function:

Here is the caller graph for this function:

m0_cm_type_register()

M0_INTERNAL int m0_cm_type_register

(

struct m0_cm_type *

cmtype

)

Definition at line 995 of file cm.c.

Here is the call graph for this function:

Here is the caller graph for this function:

m0_cm_unlock()

M0_INTERNAL void m0_cm_unlock

(

struct m0_cm *

cm

)

Releases the lock over a copy machine replica.

Definition at line 550 of file cm.c.

Here is the call graph for this function:

Here is the caller graph for this function:

m0_cm_wait()

M0_INTERNAL void m0_cm_wait	(	struct m0_cm *	cm,
		struct m0_fom *	fom
	)

Definition at line 1086 of file cm.c.

Here is the call graph for this function:

Here is the caller graph for this function:

m0_cm_wait_cancel()

M0_INTERNAL void m0_cm_wait_cancel	(	struct m0_cm *	cm,
		struct m0_fom *	fom
	)

Definition at line 1093 of file cm.c.

Here is the call graph for this function:

Here is the caller graph for this function:

m0_cmsvc2cm()

M0_INTERNAL struct m0_cm * m0_cmsvc2cm

(

struct m0_reqh_service *

cmsvc

)

Definition at line 497 of file cm.c.

Here is the caller graph for this function:

m0_ha_cm_err_send()

M0_INTERNAL int m0_ha_cm_err_send	(	struct m0_cm *	cm,
		int	rc
	)

Sends HA notification about cm failure.

Definition at line 502 of file cm.c.

Here is the call graph for this function:

Here is the caller graph for this function:

M0_TL_DEFINE()

M0_TL_DEFINE	(	cmtypes	,
		static	,
		struct m0_cm_type
	)

M0_TL_DESCR_DEFINE()

M0_TL_DESCR_DEFINE	(	cmtypes	,
		"copy machine types"	,
		static	,
		struct m0_cm_type	,
		ct_linkage	,
		ct_magix	,
		CM_TYPE_LINK_MAGIX	,
		CM_TYPE_HEAD_MAGIX
	)

m0_trigger_fom_create()

M0_INTERNAL int m0_trigger_fom_create	(	struct m0_trigger_fom *	tfom,
		struct m0_fop *	fop,
		struct m0_reqh *	reqh
	)

Definition at line 84 of file trigger_fom.c.

Here is the call graph for this function:

Here is the caller graph for this function:

M0_XCA_DOMAIN()

struct failure_data M0_XCA_DOMAIN

(

rpc

)

prepare()

static int prepare ( struct m0_fom *  fom )

static

Definition at line 185 of file trigger_fom.c.

Here is the call graph for this function:

Here is the caller graph for this function:

pump2cm()

static struct m0_cm* pump2cm ( const struct m0_cm_cp_pump *  cp_pump )

static

Definition at line 98 of file pump.c.

Here is the caller graph for this function:

pump_cb()

static bool pump_cb ( struct m0_clink *  link )

static

Definition at line 464 of file pump.c.

Here is the call graph for this function:

Here is the caller graph for this function:

pump_move()

static void pump_move ( struct m0_cm_cp_pump *  cp_fom, int  rc, int  phase  )

static

Definition at line 111 of file pump.c.

Here is the call graph for this function:

Here is the caller graph for this function:

ready()

static int ready ( struct m0_fom *  fom )

static

Definition at line 287 of file trigger_fom.c.

Here is the call graph for this function:

start()

static int start ( struct m0_fom *  fom )

static

Definition at line 321 of file trigger_fom.c.

Here is the call graph for this function:

trig2cm()

static struct m0_cm* trig2cm ( const struct m0_fom *  fom )

static

Definition at line 119 of file trigger_fom.c.

Here is the caller graph for this function:

trig2tfom()

static struct m0_trigger_fom* trig2tfom ( const struct m0_fom *  fom )

static

Definition at line 124 of file trigger_fom.c.

Here is the caller graph for this function:

trigger_fom_fini()

static void trigger_fom_fini ( struct m0_fom *  fom )

static

Definition at line 105 of file trigger_fom.c.

Here is the call graph for this function:

trigger_fom_home_locality()

static size_t trigger_fom_home_locality ( const struct m0_fom *  fom )

static

Definition at line 112 of file trigger_fom.c.

Here is the call graph for this function:

trigger_fom_tick()

static int trigger_fom_tick ( struct m0_fom *  fom )

static

Definition at line 139 of file trigger_fom.c.

Here is the call graph for this function:

trigger_rep_set()

static void trigger_rep_set ( struct m0_fom *  fom )

static

Definition at line 129 of file trigger_fom.c.

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

cm_cp_pump_conf

struct m0_sm_conf cm_cp_pump_conf

Initial value:

= {
        .scf_name      = "sm: cp pump conf",
        .scf_nr_states = ARRAY_SIZE(cm_cp_pump_sd),
        .scf_state     = cm_cp_pump_sd,
        .scf_trans_nr  = ARRAY_SIZE(cm_cp_pump_td),
        .scf_trans     = cm_cp_pump_td
}

Definition at line 370 of file pump.c.

cm_cp_pump_fom_ops

const struct m0_fom_ops cm_cp_pump_fom_ops

static

Initial value:

= {
        .fo_fini          = cm_cp_pump_fom_fini,
        .fo_tick          = cm_cp_pump_fom_tick,
        .fo_home_locality = cm_cp_pump_fom_locality
}

Definition at line 414 of file pump.c.

cm_cp_pump_fom_type_ops

const struct m0_fom_type_ops cm_cp_pump_fom_type_ops

static

Initial value:

= {
        .fto_create = NULL
}

Definition at line 94 of file pump.c.

cm_cp_pump_sd

struct m0_sm_state_descr cm_cp_pump_sd[CPP_NR]

static

Definition at line 302 of file pump.c.

cm_cp_pump_td

struct m0_sm_trans_descr cm_cp_pump_td[]

Definition at line 337 of file pump.c.

cm_sm_conf

const struct m0_sm_conf cm_sm_conf

static

Initial value:

= {
        .scf_name       = "sm:cm conf",
        .scf_nr_states  = M0_CMS_NR,
        .scf_state      = cm_state_descr
}

Definition at line 491 of file cm.c.

cm_state_descr

struct m0_sm_state_descr cm_state_descr[M0_CMS_NR]

static

Definition at line 446 of file cm.c.

cmtypes

struct m0_tl cmtypes

static

List containing the copy machines registered on a motr server.

Definition at line 432 of file cm.c.

cmtypes_bob

struct m0_bob_type cmtypes_bob

static

Definition at line 443 of file cm.c.

cmtypes_mutex

struct m0_mutex cmtypes_mutex

static

Protects access to the list m0_cmtypes.

Definition at line 435 of file cm.c.

m0_trigger_conf

const struct m0_sm_conf m0_trigger_conf

Initial value:

= {
        .scf_name      = "Trigger",
        .scf_nr_states = ARRAY_SIZE(m0_trigger_phases),
        .scf_state     = m0_trigger_phases
}

Definition at line 72 of file trigger_fom.c.

m0_trigger_phases

struct m0_sm_state_descr m0_trigger_phases[]

Initial value:

= {
        [M0_TPH_PREPARE] = {
                .sd_name      = "Prepare copy machine",
                .sd_allowed   = M0_BITS(M0_TPH_READY, M0_FOPH_INIT,
                                        M0_FOPH_FAILURE, M0_FOPH_SUCCESS,
                                        M0_FOPH_FINISH)
        },
        [M0_TPH_READY] = {
                .sd_name      = "Send ready fops",
                .sd_allowed   = M0_BITS(M0_TPH_START, M0_FOPH_FAILURE)
        },
        [M0_TPH_START] = {
                .sd_name      = "Start repair/rebalance",
                .sd_allowed   = M0_BITS(M0_FOPH_SUCCESS, M0_FOPH_FAILURE)
        },
}

Definition at line 55 of file trigger_fom.c.

M0_XCA_DOMAIN

struct m0_fom_trigger_ops M0_XCA_DOMAIN

pump_action

int(* pump_action[])(struct m0_cm_cp_pump *cp_pump)

static

Initial value:

= {
        [CPP_ALLOC]     = cpp_alloc,
        [CPP_DATA_NEXT] = cpp_data_next,
        [CPP_COMPLETE]  = cpp_complete,
        [CPP_STOP]      = cpp_stop,
        [CPP_FAIL]      = cpp_fail,
}

Definition at line 378 of file pump.c.

pump_bob

const struct m0_bob_type pump_bob

static

Initial value:

= {
        .bt_name = "copy packet pump",
        .bt_magix_offset = M0_MAGIX_OFFSET(struct m0_cm_cp_pump, p_magix),
        .bt_magix = CM_PUMP_MAGIX,
        .bt_check = NULL
}

Definition at line 85 of file pump.c.

trig_action

int(* trig_action[])(struct m0_fom *)

static

Initial value:

= {
        [M0_TPH_PREPARE] = prepare,
        [M0_TPH_READY]   = ready,
        [M0_TPH_START]   = start,
}

Definition at line 78 of file trigger_fom.c.

trigger_fom_ops

const struct m0_fom_ops trigger_fom_ops

static

Initial value:

= {
        .fo_fini          = trigger_fom_fini,
        .fo_tick          = trigger_fom_tick,
        .fo_home_locality = trigger_fom_home_locality
}

Definition at line 49 of file trigger_fom.c.
